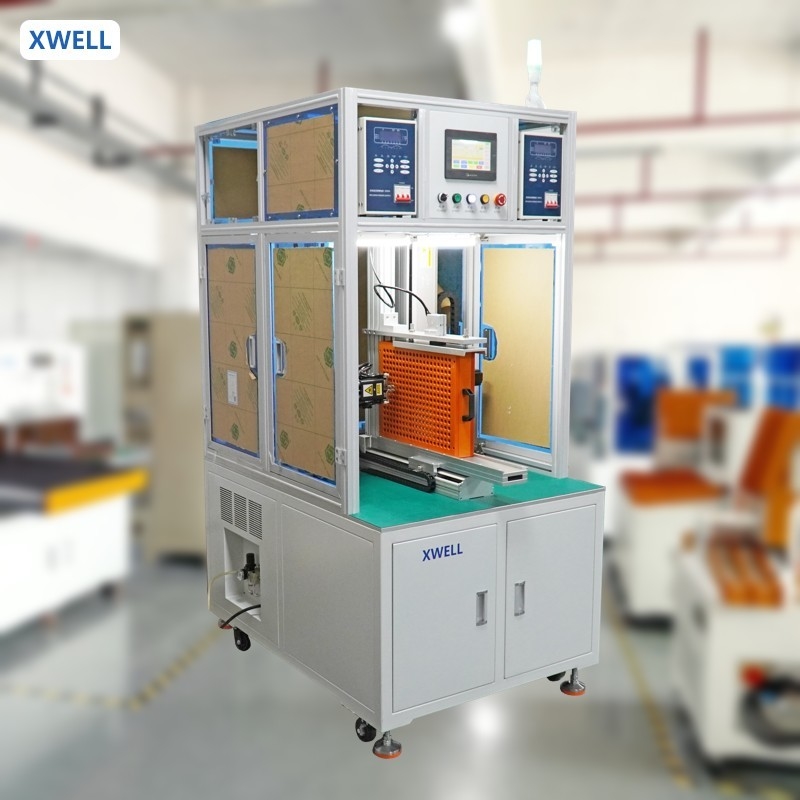

Automatic Double-Side Spot Welding Machine For 18650 Battery Pack
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Suitable: | 18650 26650 32650 | Welding Thickness: | 0.12-0.2mm |
|---|---|---|---|
| Cooling Wa: | Water Cooling | After-sales Service Provided: | Video Technical Support |
| Welding Current: | 5000A 8000A | Power: | 4000 W |
| Voltage: | 220V/380V(AC) | ||
| Highlight: | Automatic Battery Pack Spot Welding Machine,Automatic Double-Side Spot Welding Machine,18650 Battery Pack Spot Welding Machine |
||
Product Description
Automatic Double-Side Spot Welding Machine For 18650 Battery Pack
roduct Description
1. Support breakpoint startup and Manual Start Mode Conversion.
2. High efficiency of double-sided automatic welding.
3. With welding current monitoring system, it can monitor welding current in real time.
4.Water-cooled circulating heat dissipation system is used in the self-contained welding needle compensation function to effectively reduce the loss of welding needles.
Features
*Support breakpoint start, automatic start, and manual start.
*Cold solder joint and sealing off alarm.
*Build-in welding current monitor, can display real time welding current.
*Can store dozens process of different battery packs product, switching products without re-setting parameters.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
