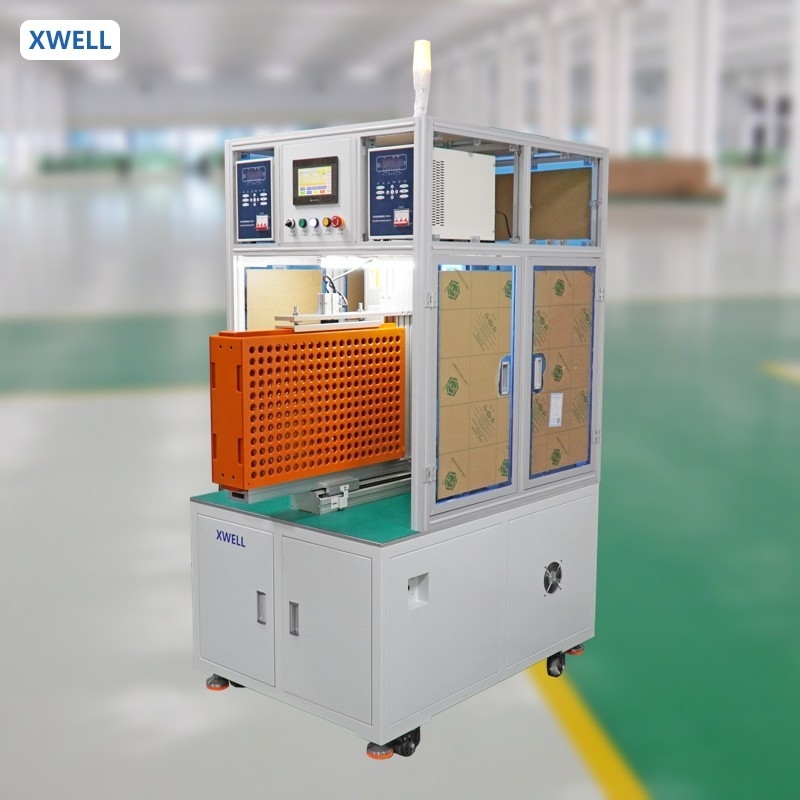

Automatic 18650 Battery Pack Welding Machine Double Side Welding
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ASW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6000 - 9000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Order(moq): | 1set | Payment: | L/C,T/T,Western Union, Paypal |
|---|---|---|---|
| Cooling Wa: | Water Cooling | After-sales Service Provided: | Video Technical Support |
| Welding Current: | 5000A 8000A | Power: | 4000 W |
| Voltage: | 220V/380V(AC) | ||
| Highlight: | 18650 Battery Pack Welding Machine,Double Side Battery Pack Welding Machine,Automatic Battery Pack Welding Machine |
||
Product Description
Automatic 18650 Battery Pack Welding Machine Double Side Welding
This machine is used for18650,26650,32650 cylinder battery pack automatic spot welding, it can weld both side together with high speed and good effect.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Battery Spot Welding Machine Specification
| Model No. | MD-ASW |
| Y-axis travel | 500mm (customizable) |
| X-axis travel | 350mm (customizable) |
| Max spot welding speed | 0.35s/point (1 hour:about 2800 units18650 cells) |
| Motor drive speed | 1000mm/S |
| Max load electric cores | X direction: 26; Y direction: 26 |
| Capable file group storage | 99 groups |
| Operating system | embedded system human-machine interface |
| Transmission mode | Taiwan precision screw with guide rail |
| Driving mode | stepper servo motor |
| Repeat positioning accuracy | ±0.02mm |
| Dimensions | L: 900mm, W: 900mm, H: 1750mm |
| Power | 4000W |
| Machine weight | 200KG |
| Max bearing weight of Y-axis | 35KG |
| Input power supply | single-phase AC 220V/50Hz AC380V 3 phase |
| Air Source | 0.4-0.6 Mpa |
Single Side Spot Welding Machine Details
