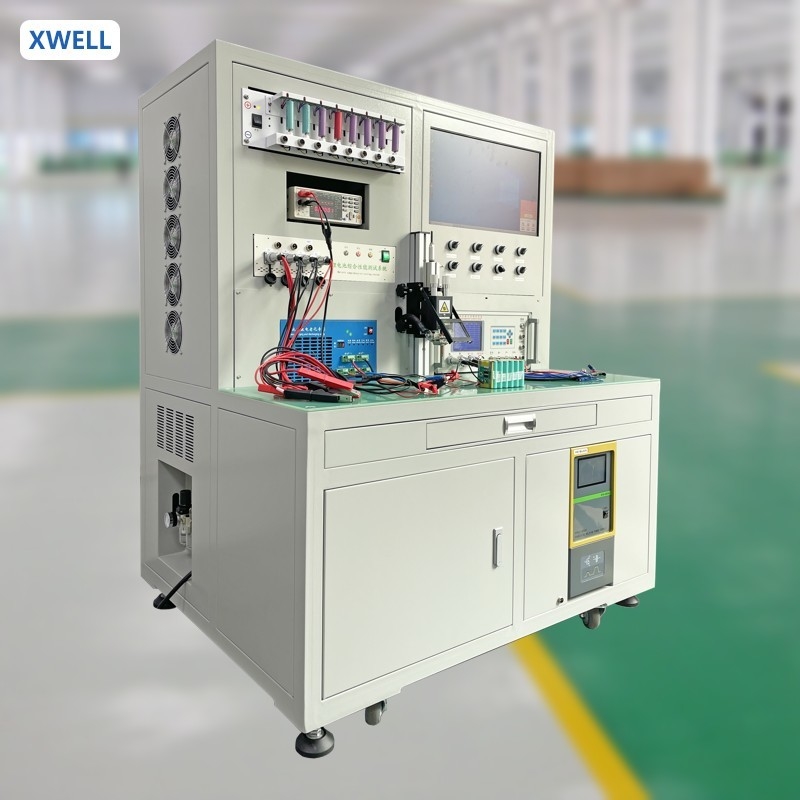

Laboratory Battery Cell Sorter Machine 10 Channels For 26650 And 32650 Cells

Brand Name:	XWELL
Model Number:	MD-BS10
MOQ:	1pcs
Price:	USD 3000 - 7900 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Energy Supply:

AC220V ± 10% 50Hz

Power Consumption:

≤1000W

Show Screen:

Large Size LCD Screen/Touch Screen

Condensed Air Pressure:

0.5 ~ 0.7Mpa

Sorting Speed:

≥ 90PPM

Chance Of Damaged Product:

≤0.1%

NG Apparatus Failure Rate:

≤0.1%

Productivity:

5000pcs/h

Supply Ability:

100 pcs per month

Highlight:

Laboratory Battery Cell Sorter Machine

32650 Battery Cell Sorter Machine

26650 Battery Cell Sorter Machine

Product Description

Lab 18650 26650 32650 10 Channels Battery Sorter Sorting Machine for Cylindrical Battery Pack Research

Product Description

The Lab Battery Cell Sorting Machine with 10 channels is designed specifically for sorting 26650 and 32650 battery cells. This advanced equipment is essential for laboratory settings where precision and efficiency are crucial.

The machine is capable of accurately sorting battery cells based on various parameters, ensuring consistent quality and performance. With its user-friendly interface and reliable operation, it simplifies the sorting process and saves time.

The automatic sorting device consists of feeding mechanism, detection mechanism, automatic sorting mechanism and receiver mechanism. The machine system designs and develops the upper computer software according to the user's requirement, and automatically classifies the batteries according to the grouping information, and collects them into the corresponding receivers.

Product Features

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

2. 10 Channel automatic cell sorter is designed to sort cylindrical cells

3. Sort by cell's voltage and impedance up to 10 groups

4. Automatic sorting control

5. Fast sorting speed ≥90PPM

6. Easy to refill cells during the process

7. Wheels design, easy to move the machine to any operating place

8. Sortting channel: 5-22 optional

Product Specification

Model	MD-BS10
Power supply	AC220V ± 10% 50Hz
Power Consumption	≤1000W
Display Screen	Large size LCD screen/Touch screen
Compressed Air Pressure	0.5 ~ 0.7Mpa
Sorting Speed	≥ 90PPM
Chance of Damaged Product	≤0.1%
NG Equipment Failure Rate	≤0.1%
Open Circuit Voltage Accuracy	± 0.1% rdg Display Resolution: 0.1 millivolt
AC Resistance Accuracy	± 0.5% rdg Display Resolution: 0.1 milliohm
Productivity	5000pcs/h
Dimension	1330x920x1600mm
Adaptation Battery	Cylindrical Battery (18650,32650,18500,26650,14500,21700 etc.)
Receiving Channel	10 channels
Operating Temperature Range	25 ° C ± 5 ° C
Humidity	≤85%
Total weight	300kg

Battery cell soring machine structure

Laboratory Battery Cell Sorter Machine 10 Channels For 26650 And 32650 Cells 0

Battery cell sorting machine details

Laboratory Battery Cell Sorter Machine 10 Channels For 26650 And 32650 Cells 1

Laboratory Battery Cell Sorter Machine 10 Channels For 26650 And 32650 Cells 2
