Professional 8 Channels Prismatic Battery Sorting Machine

Brand Name:	XWELL
Model Number:	XW-BPS08
MOQ:	1pcs
Price:	USD 10000 - 15000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Order(Moq):

1set

Product Origin:

China

Input Voltage:

AC220V/50Hz

Speed:

600 Pcs/h

Test Parameter:

AC Internal Resistance, Open DC Voltage

Power:

<1000W

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

Prismatic Battery Sorting Machine

8 Channels Battery Sorting Machine

Product Description

8 Channels Prismatic Battery Sorting Machine

Equipment Features

Prismatic battery cell sorting machine is a 8 channels automatic sorting machine with the function of automatic code scanning, automatic testing, automatic sorting of internal resistance and voltage. With high-precision internal resistance and voltage automatic testing system, the equipment according to the internal resistance, voltage value set in the software to accurately send the battery to the specified channel, the system can realize up to 8 levels of sorting. This equipment can test about 600 pieces of battery cells per hour, and the structure design is simple and generous, stable performance, simple operation, cost-effective sorting equipment.

Parameter

1)Power supply: 220V±10%/50Hz±10%
2)Power:2000W
3)Air source:0.5～0.6Mpa
4)Weight:350 KG；
5)Dimension:L1800mm*W1200mm*H1600mm；
6)Use of the environment: Please avoid the use of this equipment in high temperature, high humidity, vibration or shock, metal powder, welding spatter more places, pay attention to the control of the ambient temperature around the equipment; equipment must be grounded and separate from the personnel grounding line;

Prismatic Battery Cell Sorting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Prismatic cells
Receiving Channel	8 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	600 pcs/h
Weight	<300KG
Dimension	2250mm(L)1200mm(W)1630mm(H)
Tester	HK3561, BT3562
Productivity	600 pcs/h

Prismatic Battery Cell Sorting Machine Details

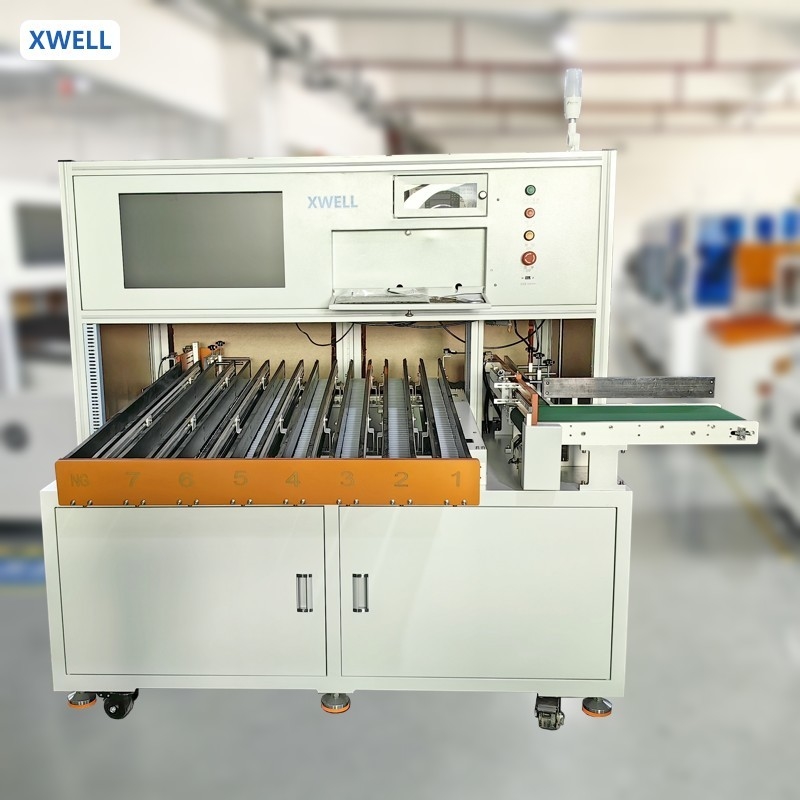

Professional 8 Channels Prismatic Battery Sorting Machine 0

Professional 8 Channels Prismatic Battery Sorting Machine 1
