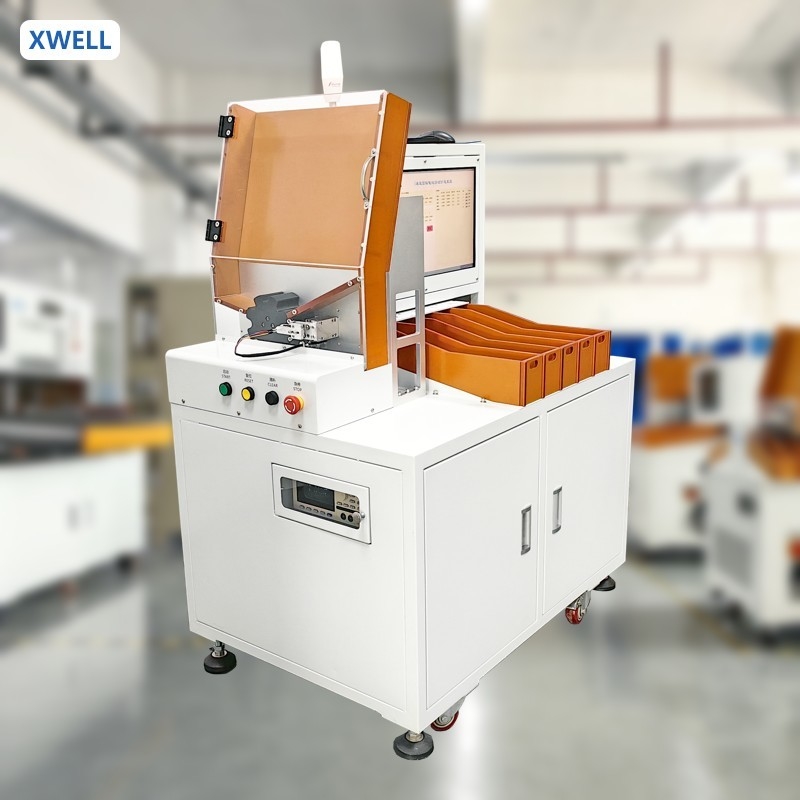

21700 Automatic 5 Channel Lithium Cylindrical Battery Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Origin: | China | Certificate: | CE ROHS Certificate |
|---|---|---|---|
| Packaging Details: | Wooden | Efficiency: | 3500-4000pcs/h |
| Power: | <1000W | Test Parameter: | AC Internal Resistance, DC Voltage |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 5 Channel Battery Sorting Machine,21700 Battery Sorting Machine,Automatic Battery Sorting Machine |
||
Product Description
21700 Automatic 5 Channel Lithium Cylindrical Battery Sorting Machine
Features:
1.Products with high precision internal resistance,Voltage,automatic test system.
2.The device is set according to the settings Internal resistance voltage,
3. Accurate delivery of cores to designated gears.
4 .Hopper put in 500 pcs High production efficiency easy to operate.
5.Stick Barley paper 4200pcs/Hour high stability.
6.Can be docked with automatic veneer cushion machine,Saving labor.
Feature:
The battery is manually loaded into the lower slot, then the battery is tested for internal resistance and voltage, the tested battery flows into the belt slot, the QR code or barcode on the battery is automatically scanned, the data is automatically entered into the system, and finally the battery is pushed into the corresponding slot.
- With the integrated industrial control, all parameters of the battery can be traced and tracked, which is convenient for data management and easy to operate. Battery voltage, battery internal resistance, grouping information and other management functions.
- Adapt to various types of batteries, easy to change type and easy to operate.
- Built-in high-precision HIOKI3561 internal resistance tester, high testing accuracy and fast.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
