Products Description
The lithium-ion battery sorter is used to sort the internal resistance and voltage of cylindrical lithium batteries. The built-in tester adopts HIOKI3561 high-precision internal resistance and voltage testing system, and the test results are analyzed by computer to generate classification data, and the historical test data can be queried, counted and exported. It is also equipped with barcode sweeping function, which can analyze and save the battery test data. It adopts precise servo motor control and synchronous belt drive, which greatly improves the testing speed and stability of test data.


Feature:
The battery is manually loaded into the lower slot, then the battery is tested for internal resistance and voltage, the tested battery flows into the belt slot, the QR code or barcode on the battery is automatically scanned, the data is automatically entered into the system, and finally the battery is pushed into the corresponding slot.
With the integrated industrial control, all parameters of the battery can be traced and tracked, which is convenient for data management and easy to operate. Battery voltage, battery internal resistance, grouping information and other management functions.
Adapt to various types of batteries, easy to change type and easy to operate.
Built-in high-precision HIOKI3561 internal resistance tester, high testing accuracy and fast.


Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details

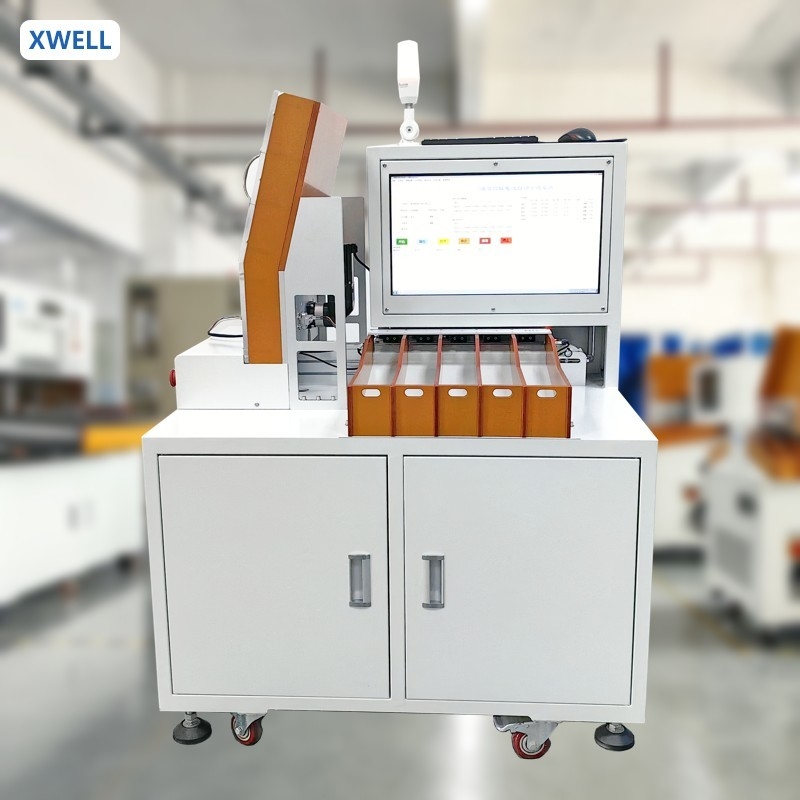

5 Channel Battery Sorting Machine with 0.01mV Resolution 0

5 Channel Battery Sorting Machine with 0.01mV Resolution 1
