5 Channel Automatic Cylindrical Cell Sorting Machine For Lithium Battery Pack Manufacturing

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Application:
18650/21700/26650/32650
Sorting Speed:
4200pcs/hour
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

5 Channel Cylindrical Cell Sorting Machine

,

Automatic Cylindrical Cell Sorting Machine

Product Description

5 Channel Automatic Cylindrical Cell Sorting Machine For Lithium Battery Pack Manufacturing




Parameters



Voltage Supply: Single-phase ~220V±10%/50Hz±10%, power <800W

Battery Types: 32140/33140(Replaceable Mold)

Receiving Channel: 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.

Test parameters: AC internal resistance, DC voltage.




Features
  • With the integrated industrial control, all parameters of the battery can be traced and tracked, which is convenient for data management and easy to operate. Battery voltage, battery internal resistance, grouping information and other management functions.
  • Adapt to various types of batteries, easy to change type and easy to operate.
  • Built-in high-precision HIOKI3561 internal resistance tester, high testing accuracy and fast.
  •











Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h

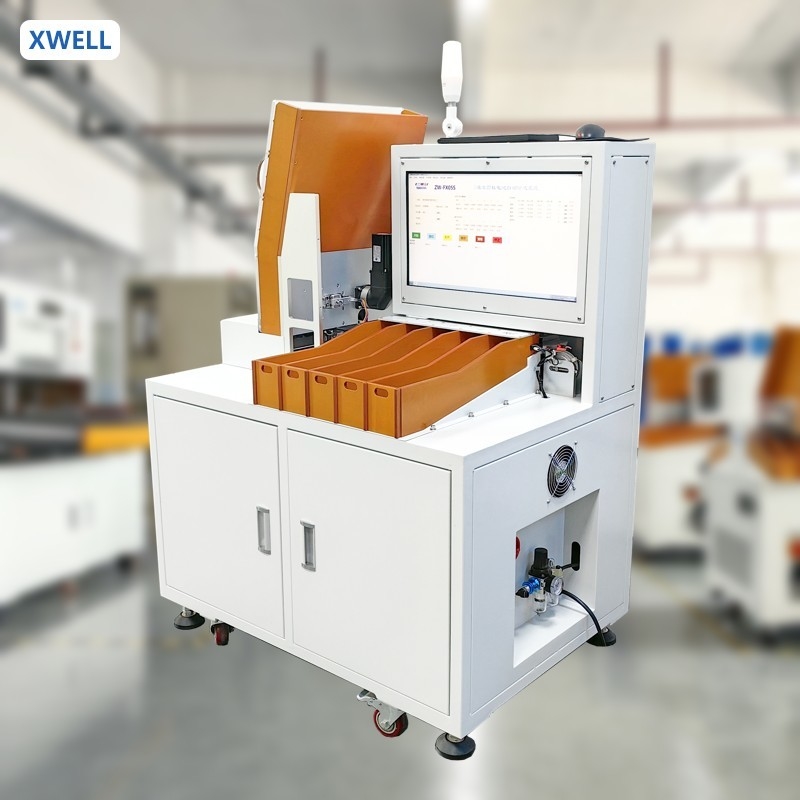

Cell Sorting Machine Details



5 Channel Automatic Cylindrical Cell Sorting Machine For Lithium Battery Pack Manufacturing 0



5 Channel Automatic Cylindrical Cell Sorting Machine For Lithium Battery Pack Manufacturing 1
