1000W 5 Channels Cylinder Battery Cell Sorting Machine For 18650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Compliance: | CE Certified | Product Origin: | China |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | 18650 Battery Cell Sorting Machine,Cylinder Battery Cell Sorting Machine,5 Channels Battery Cell Sorting Machine |
||
Product Description
5 Channels Cylinder Battery Cell Sorting Machine For 18650
Products Description
The lithium-ion battery sorter is used to sort the internal resistance and voltage of cylindrical lithium batteries. The built-in tester adopts HIOKI3561 high-precision internal resistance and voltage testing system, and the test results are analyzed by computer to generate classification data, and the historical test data can be queried, counted and exported. It is also equipped with barcode sweeping function, which can analyze and save the battery test data. It adopts precise servo motor control and synchronous belt drive, which greatly improves the testing speed and stability of test data.
Parameters
Voltage Supply: Single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types: 32140/33140(Replaceable Mold)
Receiving Channel: 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters: AC internal resistance, DC voltage.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |

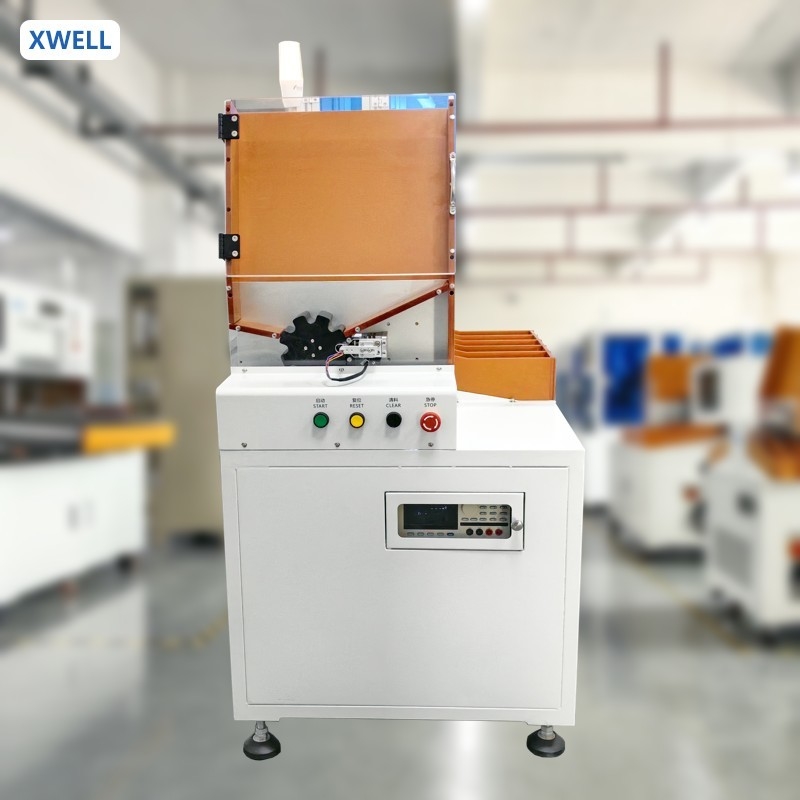

Cell Sorting Machine Details
