This equipment realizes the function of sticking highland barley paper to qualified batteries, the mechanical structure design is simple and generous, and the system performance is stable.

Features

1. The equipment has a compact structure design, beautiful appearance and small space occupation.

2. The equipment is equipped with universal movable casters, which makes it easy to move and transport the equipment.

Battery Sticking Machine Specification

oltage/Power	Single-phase 220V,50Hz, 1500W
Air Pressure	0.4-0.8Mpa
Material Specfication	Barley paper
Maximum Breadth	100mm paper Total thickness:0.3mm
Charging Pattern	Put in Batteries disposable put in 500PCS
Production Efficiency	4800pcs/hour, single pad 4pcs
Size(L xW x H)	1000x700x1630mm
Surfact Mat Material	Barley paper or PVC
Control Device	7 inck Touch Screen PLC programming unit and stepper motor

Battery Sticking Machine Parts

No.	Spare Parts	Brand
1	Air Cylinder	SMC,CKD
2	Solenoid Valve	SMC,Airtac
3	Linear Guide Rail	TPI
4	Electric Relay	OMRON
5	PLC	TouchWin
6	Inductorium	OMRON,SUNX
7	Stepper Motor	Lesev/Inovance
8	Servo Motor	Fuji/Panasonic
9	Support Base	NSK
10	Lead Screw	HIWIN

Battery sticking machine details

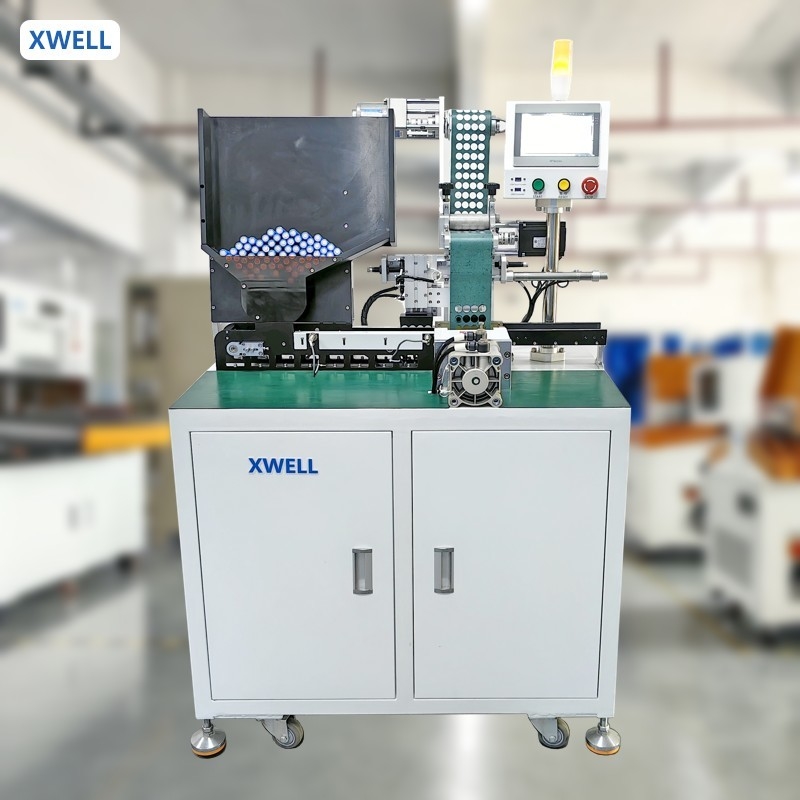

Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell 0

Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell 1

Battery Sticking Machine Samples

Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell 2

Battery Sticking Machine Package

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.

Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell 3

Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell 4

Battery Sticking Machine delivery time

15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
