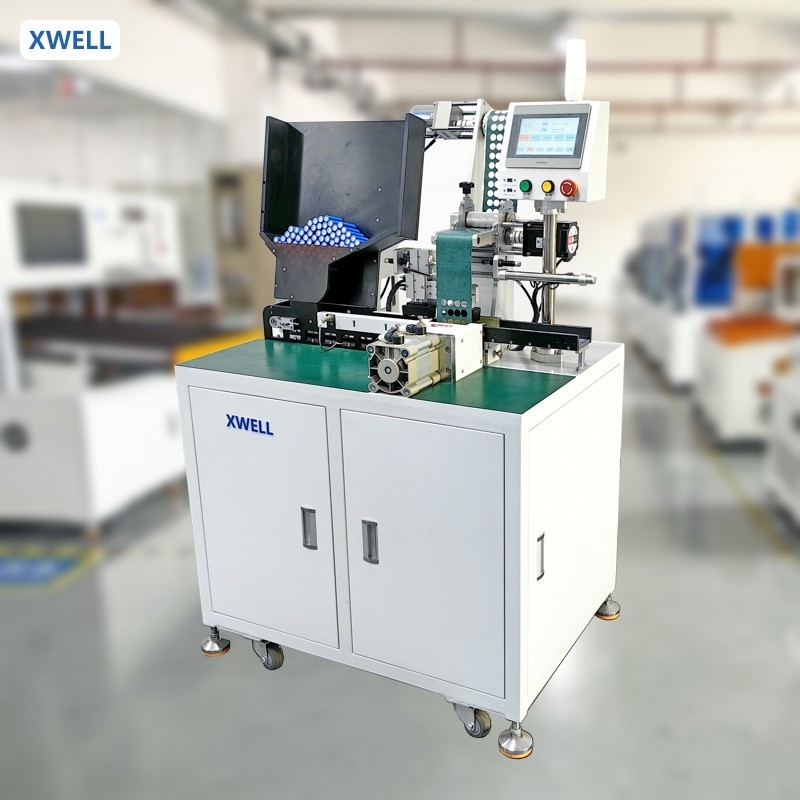

18650 Automatic Optional Channel Cylindrical Battery Sorting Machine Connecting Battery Insulation Paper
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BSM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 6500/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Certificate: | CE ROHS Certificate | Payment: | L/C,T/T,Western Union, Paypal |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Paper Size: | 100mm Paper Total Thickness 0.3mm |
| Air Pressure: | 0.4-0.8Mpa | Charging Pattern: | Put In Batteries Disposable Put In 500PCS |
| Size(L XW X H): | 1000x700x1630mm | Surfact Mat Material: | Barley Paper Or PVC |
| Highlight: | 18650 Cylindrical Battery Sorting Machine,Cylindrical Battery Sorting Machine |
||
Product Description
18650 Automatic Optional Channel Cylindrical Battery Sorting Machine Connecting Battery Insulation Paper
Introduction
The sorting and battery insulation paper sticking machine is a kind of testing and sorting equipment which is suitable for cylindrical battery to be pasted first, then checked the internal resistance, voltage and other parameters. It is equipped with a high-precision internal resistance, voltage automatic testing system. According to the internal resistance set on the computer software, the equipment accurately sends the battery to the designated position according to the voltage value, and the system can equip with optional channel battery sorter which can realize (5 / 9 / 11 / 13 / 22) sorting. The overall design efficiency of this equipment is about 4500 electric cores per hour, the structure design is simple and generous, and the performance is stable.
Mechanical Structure
Compact structure design, beautiful appearance and small space occupation;
Manual packing and loading of equipment;
The equipment adopts high quality and thick cold-rolled sheet metal, aluminum profile frame;
The equipment is equipped with universal movable casters, which makes it easy to move and handle the equipment.
Battery Sticking Machine Specification
| oltage/Power | Single-phase 220V,50Hz, 1500W |
| Air Pressure | 0.4-0.8Mpa |
| Material Specfication | Barley paper |
| Maximum Breadth |
100mm paper Total thickness:0.3mm |
| Charging Pattern | Put in Batteries disposable put in 500PCS |
| Production Efficiency | 4800pcs/hour, single pad 4pcs |
| Size(L xW x H) | 1000x700x1630mm |
| Surfact Mat Material | Barley paper or PVC |
| Control Device |
7 inck Touch Screen PLC programming unit and stepper motor |
Battery Sticking Machine Parts
| No. | Spare Parts | Brand |
| 1 | Air Cylinder | SMC,CKD |
| 2 | Solenoid Valve | SMC,Airtac |
| 3 | Linear Guide Rail | TPI |
| 4 | Electric Relay | OMRON |
| 5 | PLC | TouchWin |
| 6 | Inductorium | OMRON,SUNX |
| 7 | Stepper Motor | Lesev/Inovance |
| 8 | Servo Motor | Fuji/Panasonic |
| 9 | Support Base | NSK |
| 10 | Lead Screw | HIWIN |
Battery sticking machine details
Battery Sticking Machine Samples
Battery Sticking Machine Package
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
Battery Sticking Machine delivery time
15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
