11 Channel Power Battery Testing And Sorting Machine

11 Channel Power Battery Testing And Sorting Machine

Product Details:

Place of Origin: China
Brand Name: XWELL
Certification: CE
Model Number: XW-BS11

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Delivery Time: 15-20 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100 pcs per month
Get Best Price Contact Now

Detail Information

Machinery Test Report: Provided Condition: New
Packaging Details: Wooden Warranty: 1 Year
Efficiency: 3500-4000pcs/h Power: <1000W
Internal Resistance Test: Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm Voltage Test: Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Highlight:

Power Battery Testing And Sorting Machine

,

11 Channel Battery Sorting Machine

,

11 Channel Battery Testing Machine

Product Description

11 Channel Power Battery Testing And Sorting Machine





Introduction:

The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.



Feature

1. It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

2. 5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 32650 21700 cell.

3. Sort by cell's voltage and impedance up to 5 groups.

4. Automatic sorting control.

5. Fast sorting speed (80PPM).

6. Easy to refill cells during the process.

7. Wheels design, easy to move the machine to any operating place.




Cell Sroting Machine Specification


Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell
(32140, 33138, 33140 )

Receiving Channel 11 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ
Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm

Voltage Test

Test range: 0-8V
Accuracy:±0.1% rdg
Resolution: 0.01mV

Sorting Speed 4500 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity  4500 pcs/h




Cell Sorting Machine Details

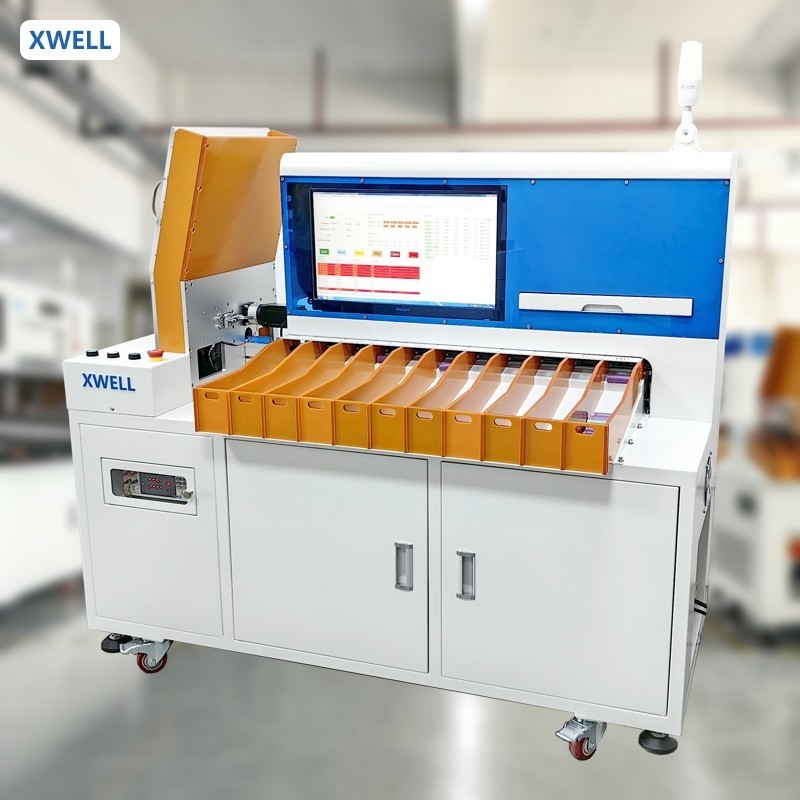

11 Channel Power Battery Testing And Sorting Machine 0

11 Channel Power Battery Testing And Sorting Machine 1
