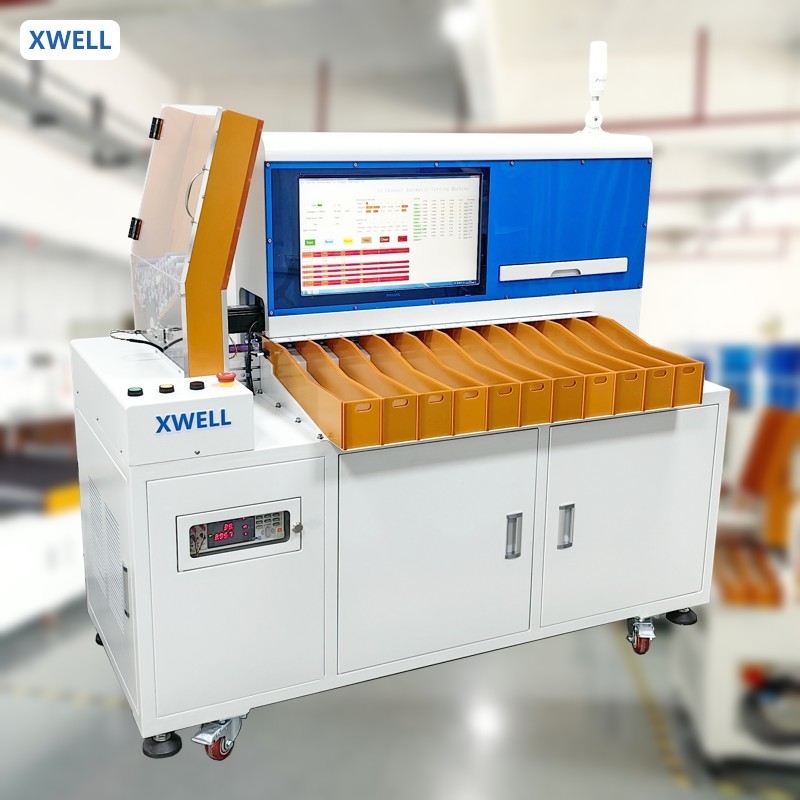

Channel Making Equipment Sorter Sorting Machine For 18650 Cylindrical Cell Battery Pack

Brand Name: XWELL
Model Number: XW-BS11
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Warranty Of Core Components:
1 Year
Core Components:
PLC
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

18650 Cylindrical Cell Battery Pack Sorter

,

Cylindrical Cell Battery Pack Sorter

,

Channel Making Equipment Sorter

Product Description

11 Channels Lithium Battery Automatic Sorter





Introduction:

The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.





Functional description:

1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.

2. The battery sorter can equip with a computer which can record the data of battery sortting.

3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.

4. Besides battery sorter, LN also provide a whole line machine for battery pack assembly.





Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 11 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 4500 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity  4500 pcs/h







Cell Sorting Machine Details



Channel Making Equipment Sorter Sorting Machine For 18650 Cylindrical Cell Battery Pack 0



Channel Making Equipment Sorter Sorting Machine For 18650 Cylindrical Cell Battery Pack 1
