5 Channel Cylindrical Lithium Battery Automatic Digital Sorting Machine Battery Cell Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Engine | Applicable Industries: | Energy & Mining, Other, Battery Making |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | 5 Channel Battery Cell Sorting Machine,Cylindrical Lithium Battery Cell Sorting Machine,Automatic Digital Battery Cell Sorting Machine |
||
Product Description
5 Channel Cylindrical Lithium Battery Automatic Digital Sorting Machine Battery Cell Sorting Machine
1.Compact and reasonable equipment structure, beautifulappearance, small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is
responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
Functional description:
The device is equipped with universal movable casters,the device can easily move when it is displaced.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |

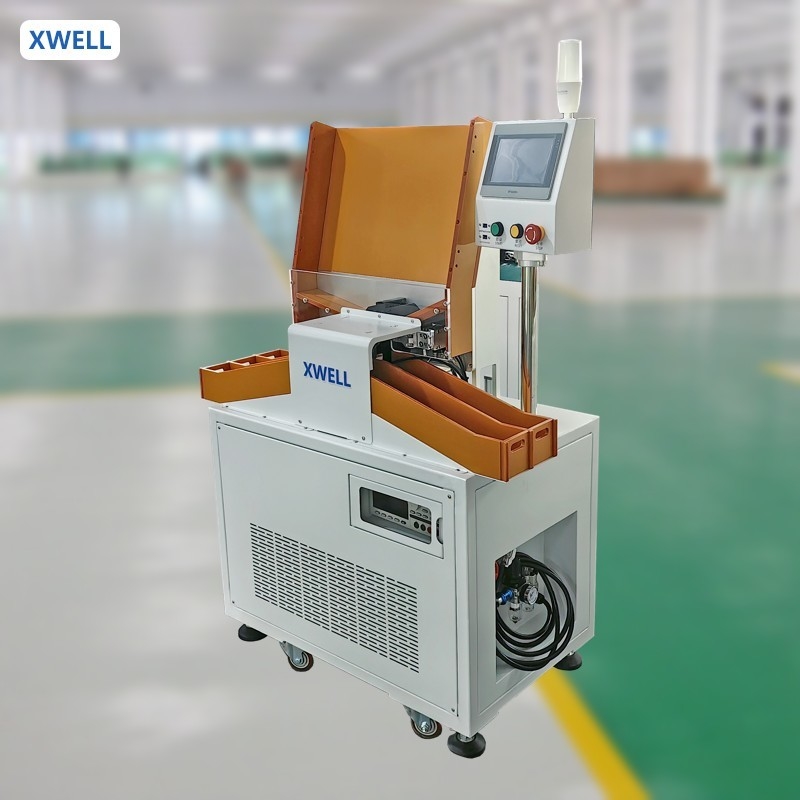

Cell Sorting Machine Details
