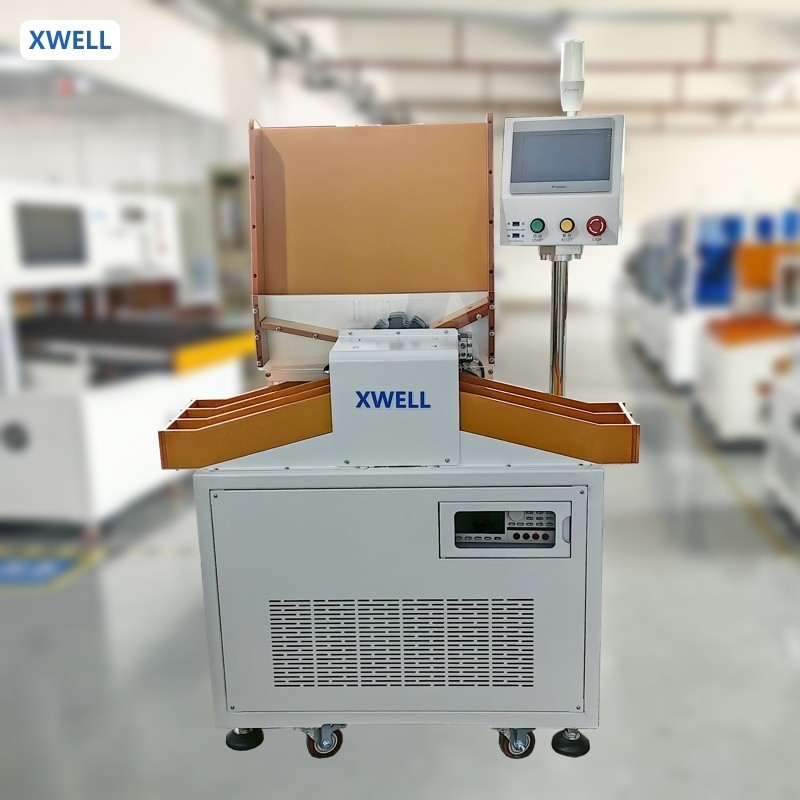

Automatic 5 Channel Lithium Ion Battery Cylinder Battery Sorter Machine Sorting Equipment For Cell Pack Assembly
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Battery Making | Condition: | New |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | 5 Channel Battery Cell Sorting Machine,Automatic Battery Cell Sorting Machine,Lithium Ion Battery Cell Sorting Machine |
||
Product Description
Automatic 5 Channel Lithium Ion Battery Cylinder Battery Sorter Machine Sorting Equipment For Cell Pack Assembly
1. Compact and reasonable equipment structure, beautiful appearance, small volume.
2. Simple equipment operation, workers can easily learning.
3. The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.
5. The device is equipped with universal movable casters, the device can easily move when it is displaced.
Functional description:
Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
