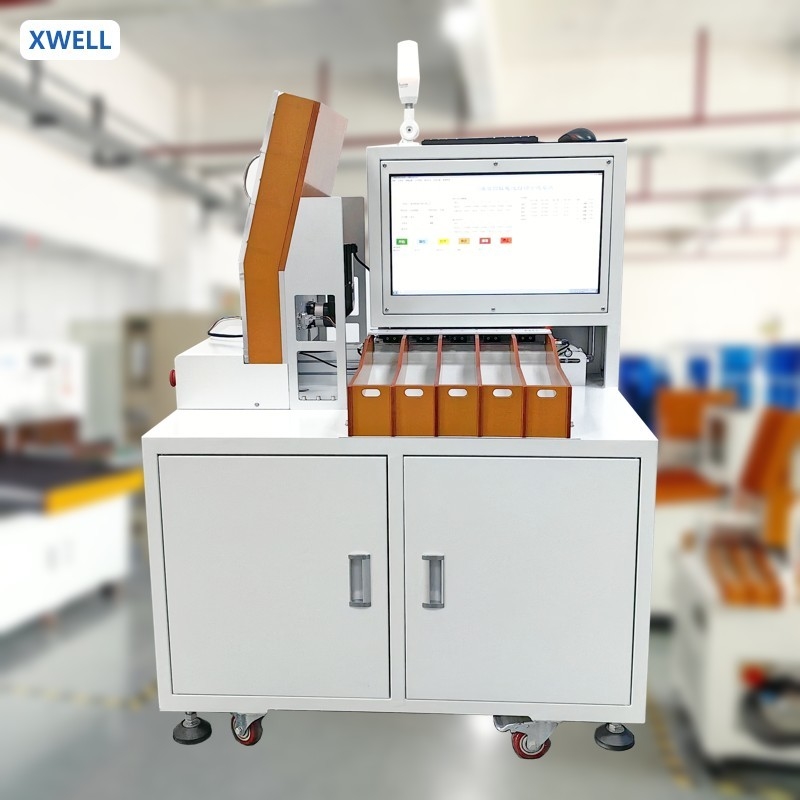

18650 21700 Lithium Battery Sorting Machine High-Precision 5-Channel Automatic Sorting Machine
  • name

18650 21700 Lithium Battery Sorting Machine High-Precision 5-Channel Automatic Sorting Machine

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
After-sales Service:
Provide Online After-sales Service
Place Of Origin:
Guangdong, China
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

5-Channel Automatic Sorting Machine

,

21700 Lithium Battery Sorting Machine

,

18650 Lithium Battery Sorting Machine

Product Description

Automatic Battery Sorting Sorter Machine Battery Sorting Equipment



Features:

When the batteries arrive at the battery pack factory, even the same batch of batteries may have different parameters(IR, Voltage), especially when the batteries come from some infeasible suppliers. When assemble the battery into a battery pack, we hope that the battery of the same battery pack has the same parameters(IR, Voltage) as much as possible, so that the performance of the battery pack will be better and more balance



Functional description:

▶Compact and reasonable equipment structure, beautifulappearance, small volume. ▶Simple equipment operation, workers can easily learning ▶The equipment is controlled by micro controller. It isresponsible for battery feeding, battery handling, batterysorting, battery testing data collection,voltage internal resistance rating, high work efficiency, savingmanpower, good product performance. ▶Equipment materials are made of high quality thick cold-rolledsheet metal, aluminum frame. ▶The device is equipped with universal movable casters,the device can easily move when it is displaced.















Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details



18650 21700 Lithium Battery Sorting Machine High-Precision 5-Channel Automatic Sorting Machine 0



18650 21700 Lithium Battery Sorting Machine High-Precision 5-Channel Automatic Sorting Machine 1
