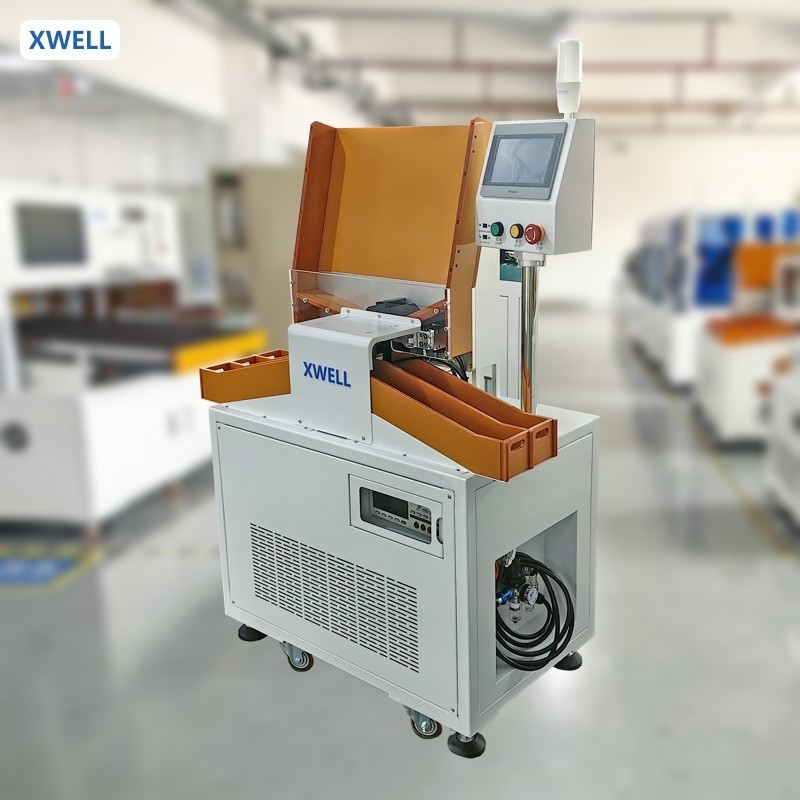

The 5 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester. According to the setting of the host computer software, the grade of each battery cell is calculated,and the batteries of different grades are transferred to different channels according to the judgment result, so as to realize the automatic sorting of battery products.



Features

This automatic sorting machine consists of automatic feeder, test, automatic sorting and collector. Manually put the integrated battery into the cache area of the automatic feeder, the automatic feeder will send the batteries to the test area one by one,after the test is finished, the pushing cylinder will send the batteries to the sorting cylinder, the sorting cylinder will put different batteries into the corresponding grade.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details
