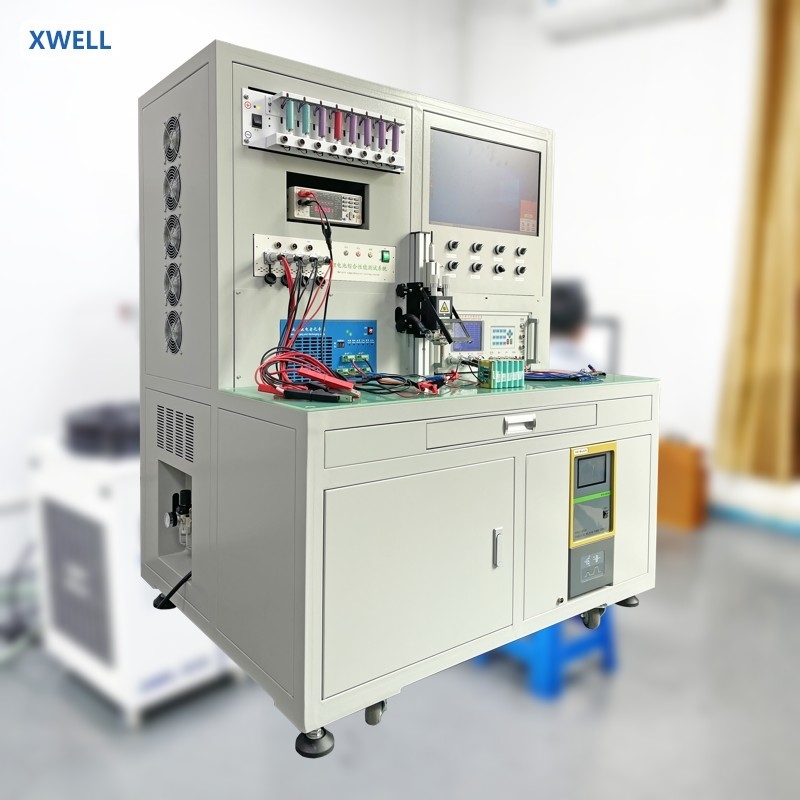

Comprehensive Battery Cell Parameter-Driven Sorting and Categorization Apparatus
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-ADW |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 11000 - 15000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100pcs per month |
|
Detail Information |
|||
| Pattern: | MD-ADW Double-sided Automatic Spot Welding Machine | Identification Number: | Two |
|---|---|---|---|
| Power Source Current: | 5000A / 8000A / 10000A Optional | Contraption Stroke: | 500*350 (mm) About 760 18650 Cells |
| Terminal Material: | Aluminum Oxide Copper | Dot Welding Speed: | 0.5s/ Point; An Hour Efficiency Of 3,200-3,600 Batteries. |
| Greatest Speed Of Motor Drive: | 1000mm/s | Peak Load Capacity: | 200-400pcs(standard 18650 Lithium Battery) |
| Functioning System: | Embedded System + Man - Machine Screen | Transmission Mode: | Step + Belt + Imported Precision Linear Guide Rail (optional Servo + Screw) |
| Highlight: | Comprehensive Battery Cell Sorting Apparatus,Categorization Battery Cell Sorting Apparatus,Parameter-Driven Battery Cell Sorting Apparatus |
||
Product Description
Battery Cell Soring Machine Adjust Telescopic Arm Welding Head Automatic Pulse Welding
Product Description
Product Features
1. The welding voltage locking technology prevents the network voltage fluctuation from affecting the welding current;
2. Adjustable welding pulse width, small welding spatter, welds color no changing.
3. Two sections current monitoring and comparing function, abnormal current sound and light alarm, effectively preventing the rosin joint.
4. Fault self-diagnosis function, display the corresponding fault points,convenient maintenance.
5. Motion control card embedded programming module, automatically generate the welding pole movement track and save it in the system file through inputing the space and group number after confirming the relevant position. Super simple and easy to learn programming
6. 99 groups welding program and parameters data storage capacity in the system, switching program per different products.
7. Display screen: Touchable microcomputer, easy operation, multi-function, real-time monitoring the operation status & target capacity.
8. The welding pole equipped with photoelectric induction to ensure that the nickel strip located in position before spot welding, eliminating the false welding from the root.
Product Advantages
1. The equipment is made of aluminum alloy and sheet metal structure, which is firm and not easy to loosen, and ensures stability.
2. It is suitable for large-scale automatic spot welding of batteries.
3. The spot welding effect is stable and guaranteed.
4. high welding efficiency, take 18650 as an example: about 4600-5000PCS power core / Hour
5. spot welding die has anti-dull configuration, ordinary staff can debug equipment and operating equipment.
6. equipment with 200 sets of spot welding parameters storage, can quickly switch spot welding model.
7. Real-time welding current moniting,false welding or explosion alarm automatically shut down
8. The coordinate parameters of spot welding can be stored and exported by U Disk
Product Specification
|
Equipment name
|
MD-ADW double-sided automatic spot welding machine
|
|
Comprehensive aging
|
3600PCS/H
|
|
Equipment weight
|
330KG
|
|
Welding thickness
|
0.3mm exceeds the need for slotting
|
|
Equipment power supply
|
220V50/60HZ
|
|
Equipment power
|
8KW (including power supply)
|
|
Equipment stroke
|
500*350 (mm) about 760 18650 cells
|
|
Welding power source
|
Inverter / Transistor optional
|
|
Power consumption
|
0.8KW when busy, 0.2KW when idle
|
|
Movement mode
|
automatic continuous
|
|
Electrode Material
|
Alumina Copper
|
|
Cooling method
|
forced water circulation cooling
|
|
Dimensions
|
1100*900*1930 (mm)
|
|
Application Scenario
|
Mass Welding of Cylindrical Batteries
|
|
Power supply current
|
5000A / 8000A / 10000A optional
|
Product Application
With the corresponding fixture, the spot welding machine can weld 18650, 26650, 32650 and other cylindrical batteries, can also be customized for a variety of cylindrical battery, square battery, button battery and etc.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack)."
