Prismatic Battery Sorting Machine 8 Channels Automatic Selector

Brand Name: XWELL
Model Number: XW-BPS08
MOQ: 1pcs
Price: USD 10000 - 15000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Battery Type:
Prismatic Battery
Channels:
8 Channels
Input Voltage:
AC220V/50Hz
Speed:
600 Pcs/h
Test Parameter:
AC Internal Resistance, Open DC Voltage
Power:
<1000W
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Prismatic Battery Sorting Machine

,

8 Channels Battery Sorting Machine

,

Automatic Selector Battery Sorting Machine

Product Description

Prismatic Battery Sorting Machine 8 Channels Automatic Selector





IV. The equipment includes the following modules

*Model: TMAX-YC-FXJ08-F test sorting system, which can complete the testing and sorting pairing of conventional open circuit voltage and AC internal resistance.

*One set of HIOKI BT3562A internal resistance meter is installed daily to test the AC internal resistance a



III. Description of equipment technical parameters

*Power supply: 220V, 0.5KW.

*Air source: 0.5 ~ 0.6 Mpa (dry air).

*Separation efficiency: ≥ 10PPM.

*Product qualification rate: ≥ 99%.

*Standby rate: ≥ 95%.

*Qualified rate of sorting: ≥ 98%.

*Sorting accuracy: 99.9%.







Prismatic Battery Cell Sorting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Prismatic cells
Receiving Channel 8 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 600 pcs/h
Weight <300KG
Dimension 2250mm(L)*1200mm(W)*1630mm(H)
Tester HK3561, BT3562
Productivity 600 pcs/h



Prismatic Battery Cell Sorting Machine Details

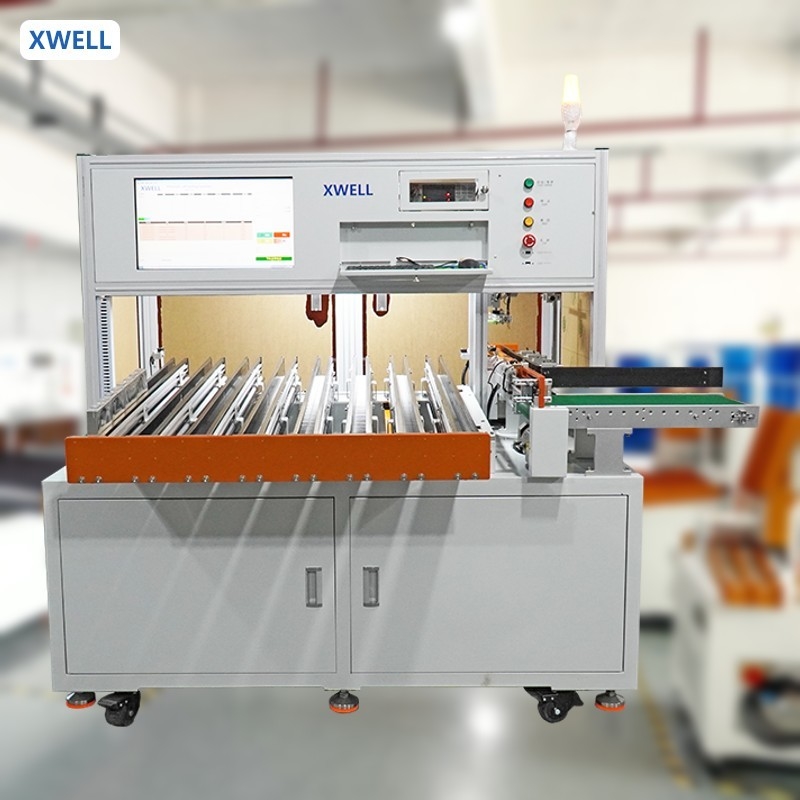

Prismatic Battery Sorting Machine 8 Channels Automatic Selector 0



Prismatic Battery Sorting Machine 8 Channels Automatic Selector 1
