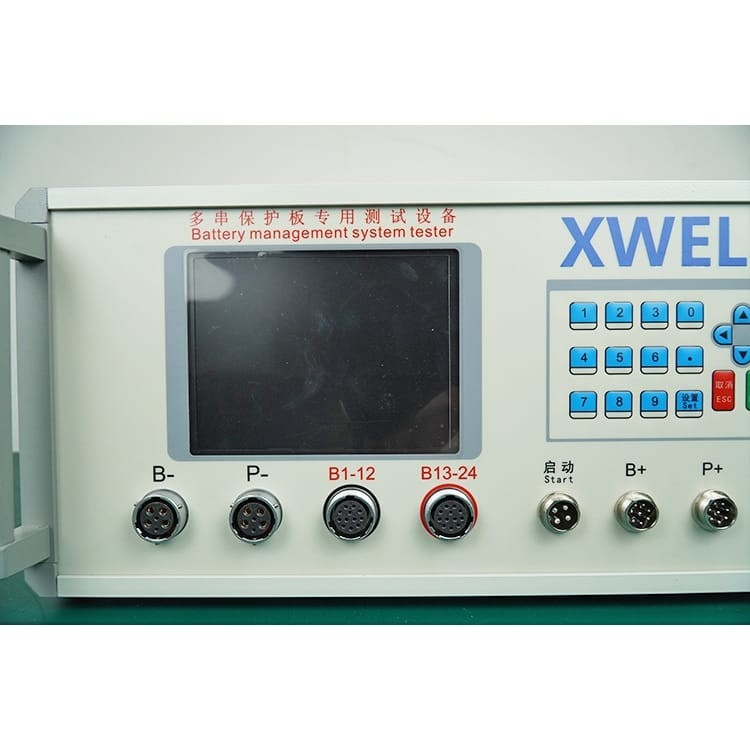

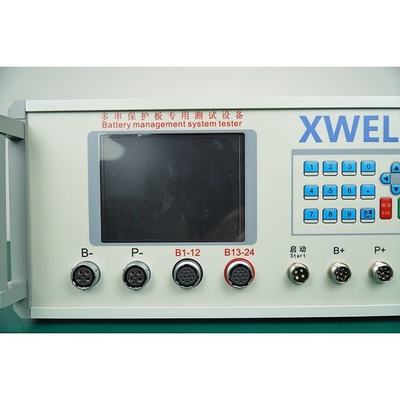

Cylindrical Cell Pack Protecting Board Charge Discharge Tester Lithium Battery Pack BMS Testing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Number Of Test Series: | 1-24 Series | Over Discharge Protection Current: | 1-120A |
|---|---|---|---|
| Supply Ability: | 10000 Set/Sets Per Month | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Machine Size: | 420*430*220mm |
| Highlight: | BMS Testing Machine Protecting Board Tester,Cylindrical Cell Pack Protecting Board Tester,Lithium Battery Pack Protecting Board Tester |
||
Product Description
Cylindrical Cell Pack Protecting Board Charge Discharge Tester Lithium Battery Pack BMS Testing Machine
Application and Function Introduction
1. Application: It is mainly used to detect whether the functional indexes of power battery protection board are within the parameter range, so as to provide a set of detection standards for staff. It is mainly used for the test of power battery protection board of protection board manufacturers and power battery manufacturers.
Main Performance
1. Routine test items
Internal resistance test, overcharge and discharge test, overcharge recovery, overcharge and discharge recovery test, overcurrent test (Charging overcurrent and discharge overcurrent), overcharge protection voltage, overcharge recovery voltage, overcharge and discharge protection voltage, overcharge recovery voltage, overcurrent protection, etc.
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
Detail
