BMS Battery Manage System Tester 1-24 Series Bms Testing Machinent System
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | PBTS24-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 4000 - 6500 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Certification: | CE | Place Of Origin: | China |
|---|---|---|---|
| Supply Ability: | 10000 Set/Sets Per Month | Voltage: | 220VAC |
| Maximum Power: | 1000W | Estable Type: | LiFePO4, LiCoO3 |
| Reference Voltage: | Ternary Lithium(3.8V), Lithium Iron Phosphate(3.0V) | Over Discharge Protection: | 0-5V ±5mv |
| Over Discharge Protection Released: | 0-5V ±5mv | Machine Size: | 420*430*220mm |
| Highlight: | Bms Battery Manage System Tester,Accurate Battery Manage System Tester |
||
Product Description

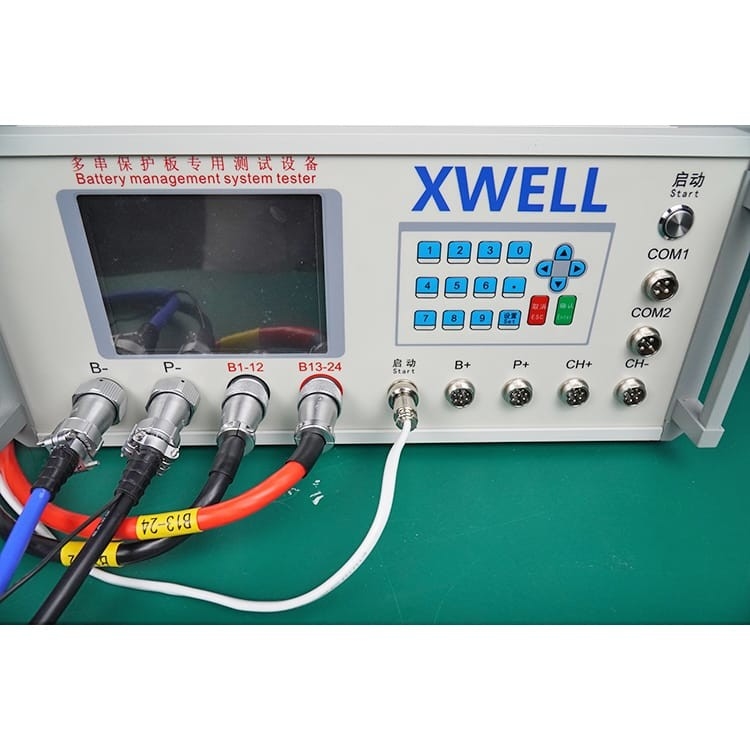

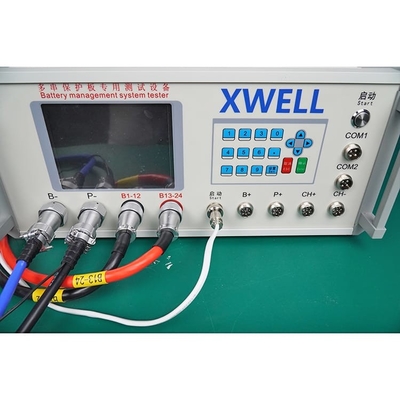

BMS Battery Manage System Tester 1-24 Series Bms Testing Machinent System
Function Introduce
1)1-24 series battery management system tester, high degree of automation, fast testing speed and high testing accuracy. With test function of overcharge protection, overcharge recovery, overdischarge protection, overdischarge recovery, overcurrent protection (overcharge current and overdischarge current), internal resistance, self-consumption, short circuit protection, overcharge protection time, overcurrent protection time, overdischarge protection Time, balance current, balance voltage etc.
2)It can test the BMS of MCN battery, LiFeO4 battery and cobalt acid battery.
Device Advantages
1. Cycle: cycle times: 1 to 9999 times
2. Laboratory mode, can arbitrarily adjust the voltage value of a section
3 Can continuously provide charging and discharging current.
4. Using programming, the device carries out the number of cycles of each indicator of the protection board without interruption.
5. Log tracking, With log function, including the test of the entire process of operation records, abnormal records, can be used for the traceability of the test process.
6. Data processing, human-machine interface
Specification
|
Parameter
|
Test Range
|
Accuracy
|
|
Number of Testing Series
|
1-6 series optional
|
|
|
Voltage Reference
|
Ternary Battery:3.8V
Lithium Battery: 3V |
|
|
Overcharge/Overdischarge Protection Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge/Overdischarge Voltage
|
0.5-5V
|
±5mV
|
|
Overcharge Protection Current
|
0-50A
|
±0.1A
|
|
Over-discharge Protection Current
|
0-120A
|
±0.1A
|
|
Equilibrium Open Voltage
|
0.5-5V
|
±5mV
|
|
Equilibrium Real-time Current
|
0-200mA
|
±1mA
|
|
Overcurrent Protection Delay
|
0-15S
|
±1mS
|
|
Overcharge/Overdischarge Protection Delay
|
0-20S
|
±1mS
|
|
Single-section Self-consuming Power
|
0-500uA
|
±1uA
|
|
Internal Loop Resistance
|
0-500mΩ
|
±1mΩ
|
|
Short Circuit Protection (more than 6 series)
|
0-9999us
|
±1us
|
|
Supply Voltage
|
220VAC
|
|
|
Maximum Power
|
600W
|
|
|
Current Level
|
60-120A
|
|
|
Machine Size
|
420*430*220mm
|
Detail
