Battery Lithium Ion Prismatic Cell Automatic Stacking Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-PC10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Packaging Details: | Wooden box |
| Delivery Time: | 10-15 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Supply Ability: | 100 pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Model: | XW-PC10 | User Interface: | Touch Screen Software |
| Driver: | Servo Motor | Transmission: | Bearings And Screw |
| Highlight: | Lithium Ion Stacking Machine,Automatic Battery Stacking Machine,Prismatic Cell Stacking Machine |
||
Product Description

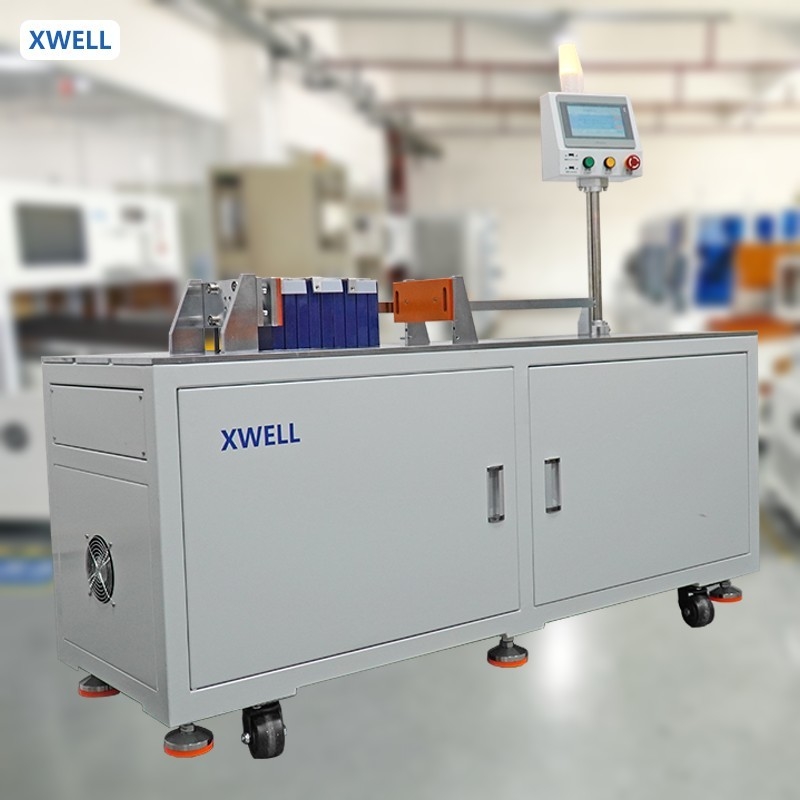

Battery Lithium Ion Prismatic Cell Automatic Stacking Machine
Stacking machine description
XW-PC10 is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.
Advanced Features:
· PLC Touch Screen Control allows easy condition setting
· Continuous "Z" fashion stacking with a separator
· Auto electrode pick-up & stacking via vacuum suction manipulator
· Adjustable mechanical fixture for accurate electrodes positioning
· Unreeling rotors for separator film feeding
· Auto-tension control for separator film delivery
Stacking machine specification
| Item | Name | Parameter |
| 1 | Model | XW-PC10 |
| 2 | Max travel | 1000mm |
| 3 | Control system | PLC |
| 4 | User interface | Touch screen software |
| 5 | Driver | Servo motor |
| 6 | Transmission | Bearings and screw |
| 7 | Pressure measure | High precession pressure sensor |
| 8 | Position accuracy | 0.01mm |
| 9 | Pressure accuracy | 0.1kg |
| 10 | Power supply | AC220V/50Hz |
| 11 | Power | 2KW |
| 12 | Size | 1500*500*1500mm |
| 13 | Weight | 200kg |

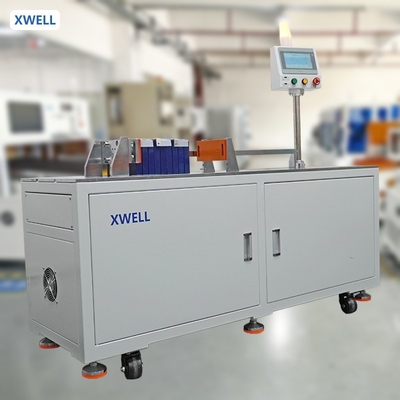

Stacking machine details
FAQ
Q1: Are your factory or trading company?
A: We are professional battery machine manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
Q4. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A:Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6. Do you test all your goods before delivery?
A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them
