Battery Pack Testing Machine

Precision Cylindrical Battery Production Plant Positive And Negative Ccd Testing Machine Visual Inspection System

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Precision Cylindrical Battery Production Plant Positive And Negative Ccd Testing Machine Visual Inspection System

Brand Name:	XWELL
Model Number:	XW-CCD
MOQ:	1 PCS
Price:	USD3000-5000/PCS
Packaging Details:	Wooden box
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Applicable Industries:

Manufacturing Plant, Retail, Energy & Mining, Other

Test Speed:

0.1-500mm/min

Working Voltage:

AC 220V 50Hz~60Hz

Itinerary:

200mm

Control Method:

Computer Control

Voltage Range:

0-150V

Charge Current:

20A

Sustainable Load Power:

6KW

Data Output:

EXCEL,TXT

Test Temperature:

130C+2.0℃;( No-load Test)

Minimum Air Pressure:

5.0KPa

Communication Means:

TCP/IP Protocol

Electric Axis Stroke:

≥450mm

Supply Ability:

20 PCS a month

Highlight:

Precision Cylindrical Battery Production Plant

Visual Inspection System Battery Production Plant

Product Description

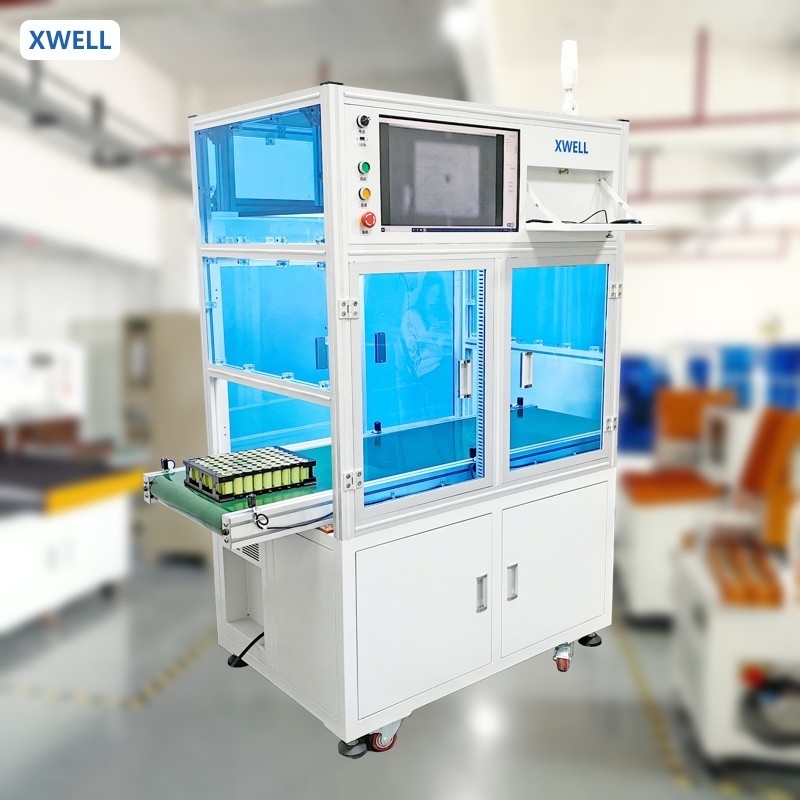

Precision Cylindrical Battery Production Plant Positive And Negative Ccd Testing Machine Visual Inspection System

Introduction:

CCD visual inspection is used to judge whether the positive and negative poles of the battery cell are reversed, whether the battery cell position is misplaced, and whether the battery pack is reversed. The output result is given to the alarm. For the cylindrical cell, the camera is used to collect the positive and negative pole data, compare the number of positive and negative poles with the sample plate, quickly analyze the results (NG or OK), and mark the position of NG, so as to confirm the positive and negative poles before the battery pack enters the spot welding, and prevent defects caused by the wrong position of positive and negative poles.

Technical parameter

1. Overall dimensions: 850(L)*800(W)*1775 (H)

2. Suitable for cell specifications: cylindrical cell

3. Working voltage: single-phase AC220±10%/50HZ

4. Conventional detection range :400mm*300mm, can be customized according to requirements

5. Display: 22 inches widescreen

6. Host: Industrial computer with Gigabit network card

7. Camera: 2000W HD camera

8. Lens: HD imported lens

Parameter

item	value
Power supply	AC220V/50Hz
Power	600W
Suitable for cell	14430, 14500, 18500, 18620, 21700, 26650...
Inspection size	400*300 mm, customizable
Inspection degree	360°
Inspection speed	1 s/pcs
Merchine Size	L850*W80
