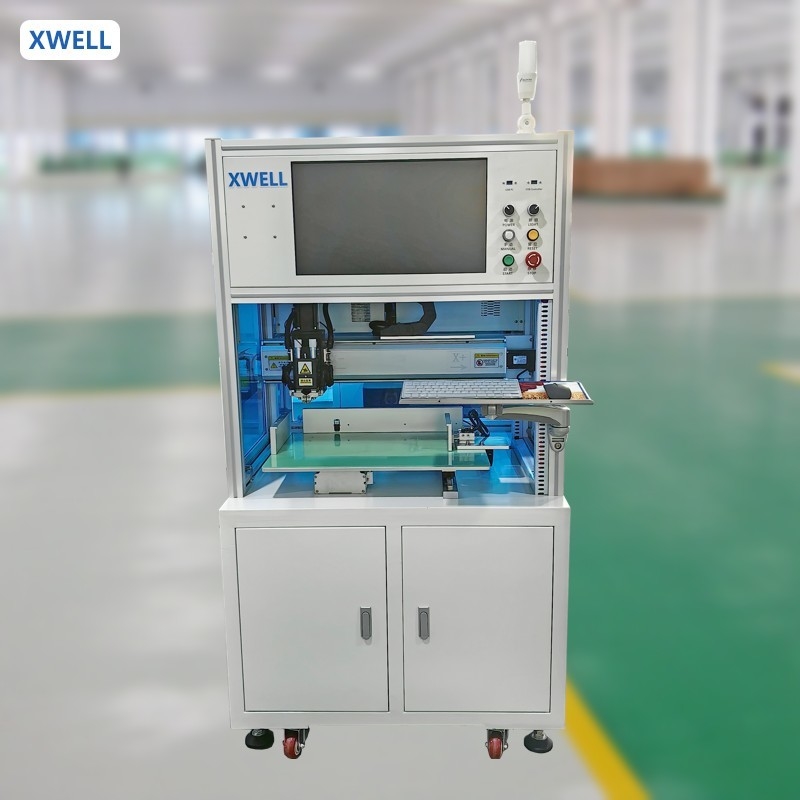

18650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack

18650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack

Product Details:

Place of Origin: China
Brand Name: XWELL
Certification: CE
Model Number: MD-ASW

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD 6000 - 9000 / pcs
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 100pcs per month
Get Best Price Contact Now

Detail Information

Application: Electric Power Systems Certification: CE
After-sales Service Provided: Video Technical Support Pack Size: X Direction: 26; Y Direction: 26
Welding Current: 5000A 8000A Voltage: 220V/380V(AC)
Power: 4000 W
Highlight:

18650 Lithium Battery Pack Welding Machine

,

Automatic CNC Spot Welder

,

Cylindrical Cell Pack Welding Machine

Product Description

18650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack

Features

1.Support breakpoint start, support automatic start and manual start mode conversion.

2.It has a false spot welding and out of spot welding alarm function.

3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.

4.Welding needle replacement forecast reminder.

5.Own welding current monitoring system, real-time monitoring of welding current.

Introduction:

The electrical control part of the spot welding machine adopts modular design, with high integration, good versatility and easy maintenance; it mainly performs the traveling mechanism is controlled by servo motor, which has high precision and good reliability; the electrical circuit of the equipment adopts domestic and foreign standards.Control components and devices are easy to maintain and replace. Supports Autocad data import, array and manual methods, which significantly improves spot welding efficiency and ensures the standardization and reliability of spot welding station production in the Pack assembly line.


Battery Spot Welding Machine Specification


Model No. MD-ASW
Y-axis travel 500mm (customizable)
X-axis travel 350mm (customizable)
Max spot welding speed 0.35s/point (1 hour:about 2800 units18650 cells)
Motor drive speed 1000mm/S
Max load electric cores X direction: 26; Y direction: 26
Capable file group storage 99 groups
Operating system embedded system human-machine interface
Transmission mode Taiwan precision screw with guide rail
Driving mode stepper servo motor
Repeat positioning accuracy ±0.02mm
Dimensions L: 900mm, W: 900mm, H: 1750mm
Power 4000W
Machine weight 200KG
Max bearing weight of Y-axis 35KG
Input power supply single-phase AC 220V/50Hz AC380V 3 phase
Air Source 0.4-0.6 Mpa


Single Side Spot Welding Machine Details
18650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack 0
18650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack 118650 Lithium Battery Pack Automatic CNC Spot Welder Welding Machine Assembly Line For Cylindrical Cell Pack 2
