5 Channel Battery Cells Testing And Sorting Machine
  • name

5 Channel Battery Cells Testing And Sorting Machine

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Place Of Origin:
Guangdong, China
Type:
Voltage, Current
Packaging Details:
Wooden
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

5 Channel Battery Cells Testing Machine

,

5 Channel Battery Cells Sorting Machine

Product Description

5 Channel Battery Cells Testing And Sorting Machine



Equipment function

1) Voltage internal resistance test
(2) 10-level sorting
(3) Separation efficiency: ≥4200 pieces/hour
3. Equipment features:
(1) Feeding method: manually load the battery to the feeding hopper
(2) Receiving method: 10 grades of manual receiving
(3) Test station: test 1 battery at a time
(4) Sorting method: the stepper motor moves the battery one grid at a time, and the cylinder pushes the battery to the receiving






Structure of Sorter

It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.

Automatic cell sorter is designed to sort cylindrical 18650 or 26650 ,26700 cells
Sort by cell's voltage and impedance
Automatic sorting control
Easy to refill cells during the process wheels design, easy to move the machine to any operating place











Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details

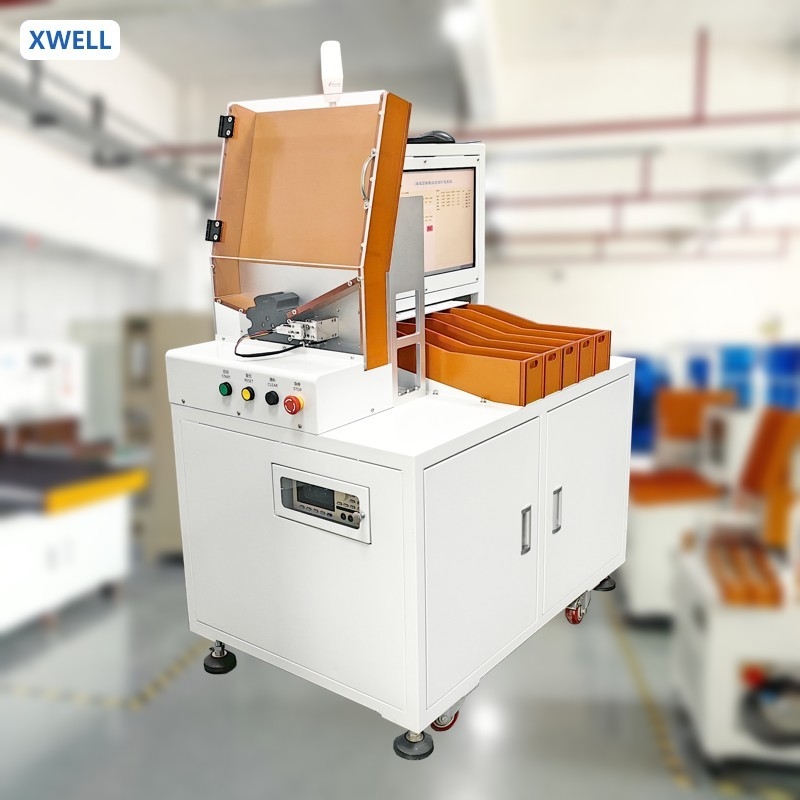

5 Channel Battery Cells Testing And Sorting Machine 0



5 Channel Battery Cells Testing And Sorting Machine 1
