Battery Cell Sorting Machine

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine

Brand Name:	XWELL
Model Number:	XW-BS05
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Warranty:

1 Year

Core Components:

PLC

Packaging Details:

Wooden

Efficiency:

3500-4000pcs/h

Power:

<1000W

Test Parameter:

AC Internal Resistance, DC Voltage

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

18650 Cell Sorting Machine

5 Channel Cell Sorting Machine

Automatic Cylindrical Battery Cell Sorting Machine

Product Description

AA Cylindrical Power Cell Battery Pack IR Voltage Tester Grading Sorting Sorter Machine

Features
Compact and reasonable equipment structure, beautifulappearance, small volume.

Simple equipment operation, workers can easily learning

The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving manpower, good product performance.

Structure of Sorter

The 5 channels battery sorting machine is used for automatic sorting of battery by voltage and internal resistance with a voltage internal resistance tester.It sets the different grade in the touch screen, and shifting different grades of batteries to
different channels according to the judgment result.
This automatic sorting machine is composed of loading mechanism, testing mechanism, automatic sorting and receiving mechanism,etc.
The machine's system automatically sorts and collects the batteries into their respective corresponding receivers based on group information according to the user's settings.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details

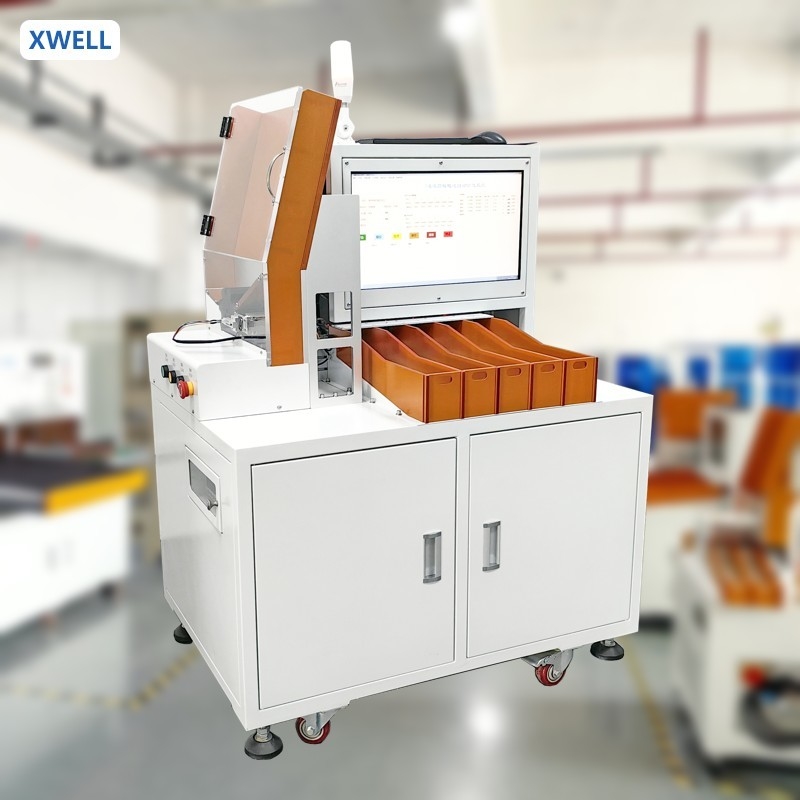

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine 0

5 Channel Automatic Cylindrical Battery 18650 Cell Sorting Machine 1
