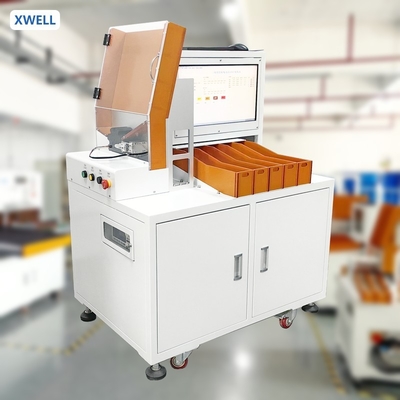

Lithium Ion Battery Prismatic Cell 5 Channel Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Marketing Type: | Ordinary Product | Product Name: | Automatic Sorting Machine |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | Lithium Ion Battery Cell Sorting Machine,5 Channel Battery Cell Sorting Machine,Prismatic Cell Battery Cell Sorting Machine |
||
Product Description
Lithium Ion Battery Prismatic Cell 5 Channel Sorting Machine
Features
It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
Device action flow
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
