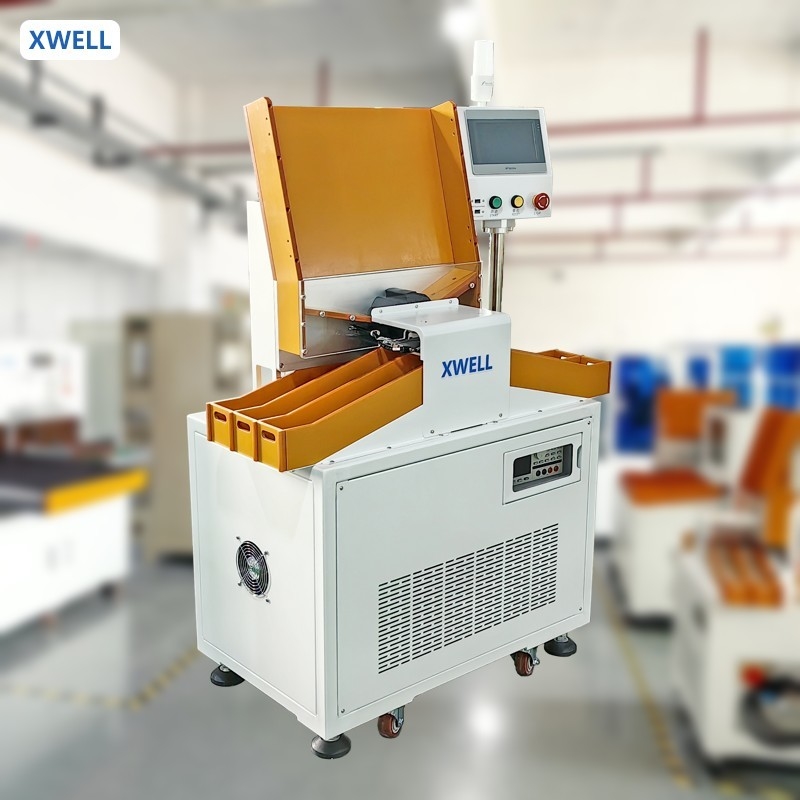

5 Channel Lab Li-Ion AA Cylindrical Power Cell Battery Pack Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC, Engine | Application Fields: | Lithium Battery |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | Power Cell Battery Pack Sorting Machine,AA Cylindrical Battery Pack Sorting Machine |
||
Product Description
5 Channel Lab Li-Ion AA Cylindrical Power Cell Battery Pack
Structure of Sorter
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
4) The equipment is made of high-quality thick cold-rolled sheet metal and aluminium profile frame.
5) The equipment is equipped with universal movable casters, which can move easily when shifting.
Features
1. Compact and reasonable equipment structure, beautiful appearance, small volume.
2. Simple equipment operation, workers can easily learning.
3. The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.
5. The device is equipped with universal movable casters, the device can easily move when it is displaced.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
