5 Channel 18650 21700 32650 Battery Sorting Machine Cylindrical Cell Battery Testing Sorting Machine
  • name

5 Channel 18650 21700 32650 Battery Sorting Machine Cylindrical Cell Battery Testing Sorting Machine

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Channels:
5
Tester:
HK3561 (Optional: HIOKl)
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

18650 Battery Sorting Machine

,

Cylindrical Cell Battery Sorting Machine

,

5 Channel Battery Sorting Machine

Product Description

5 Channel 18650 21700 32650 Battery Sorting Machine Cylindrical Cell Battery Testing Sorting Machine



The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting






Introduction

It is a must equipment for Battery Pack Manufacturer for voltage and resistance testing and sorting.
5 Channel automatic cell sorter is designed to sort cylindrical 18650 or 26650 ,26700 cells
Sort by cell's voltage and impedance up to 5 groups
Automatic sorting control
Easy to refill cells during the process
wheels design, easy to move the machine to any operating place









Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details

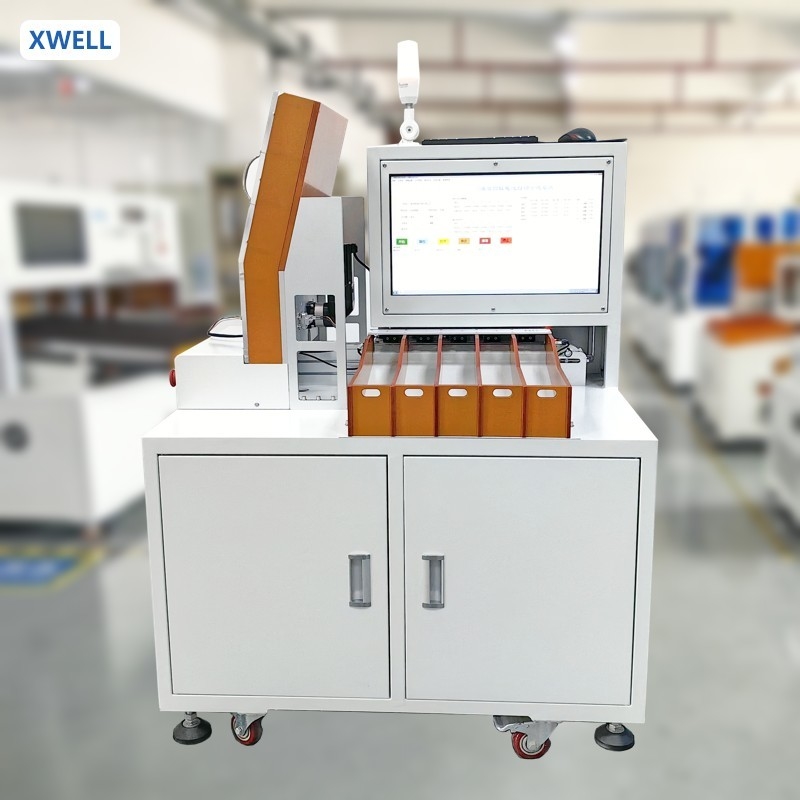

5 Channel 18650 21700 32650 Battery Sorting Machine Cylindrical Cell Battery Testing Sorting Machine 0



5 Channel 18650 21700 32650 Battery Sorting Machine Cylindrical Cell Battery Testing Sorting Machine 1
