Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter

Brand Name:	XWELL
Model Number:	XW-BS05
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Feature:

Can Add Data Record Function

Data Storage:

Test Data Can Be Stored On A U Disk

Packaging Details:

Wooden

Warranty:

1 Year

Efficiency:

3500-4000pcs/h

Power:

<1000W

Test Parameter:

AC Internal Resistance, DC Voltage

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

Cylindrical Cell Internal Resistance Testing Sorter

Automatic Battery IR Voltage Sorting Equipment

Product Description

Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter

Features
Products with high precision internal resistance,Voltage,automatic test system.
The device is set according to the settings Internal resistance voltage,
Accurate delivery of cores to designated gears.
Hopper put in 500 pcs High production efficiency easy to operate.
Stick Barley paper 4200pcs/Hour high stability.
Can be docked with automatic veneer cushion machine,Saving labor.



Introduction

The battery sorter is mainly used to support the process of sorting and matching cylindrical cores.

On the basis of conventional capacity parameter sorting, accurate AC internal resistance measurement, open-circuit voltage measurement and sorting and matching of the core are carried out.

The equipment consists of man-machine interface, charging of core hopper, automatic measurement of internal resistance of core voltage, automatic grading, feeding trough and so on. The maximum one-time grading is 5 grades.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

Cell Sorting Machine Details

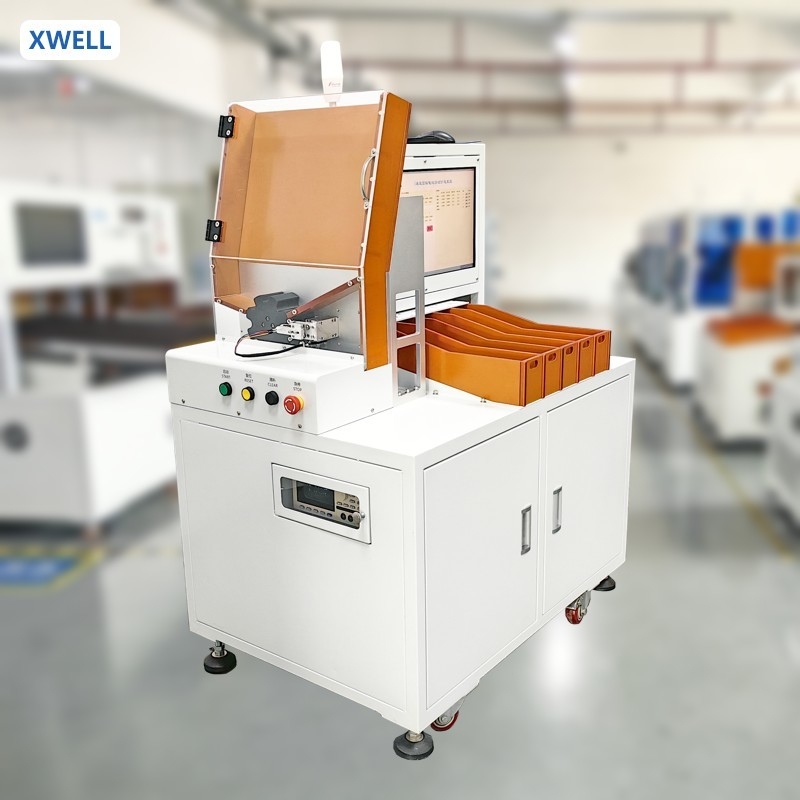

Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter 0

Automatic 5 Channel Lithium-Ion Battery IR Voltage Sorting Equipment Cylindrical Cell Internal Resistance Testing Sorter 1
