XW-BS05 can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders batt



Customization

1. We can provide 5-22 channel battery sorter according to your battery productivity requirement.

2. The battery sorter can equip with a computer which can record the data of battery sortting.

3. Battery sorter is suitable for all kinds of cylindrical batteries which is a useful machine for battery pack assembly.

4. Besides battery sorter, LN also provide a whole line machine for battery pack assembly.

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	5 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	3000 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	3000 pcs/h

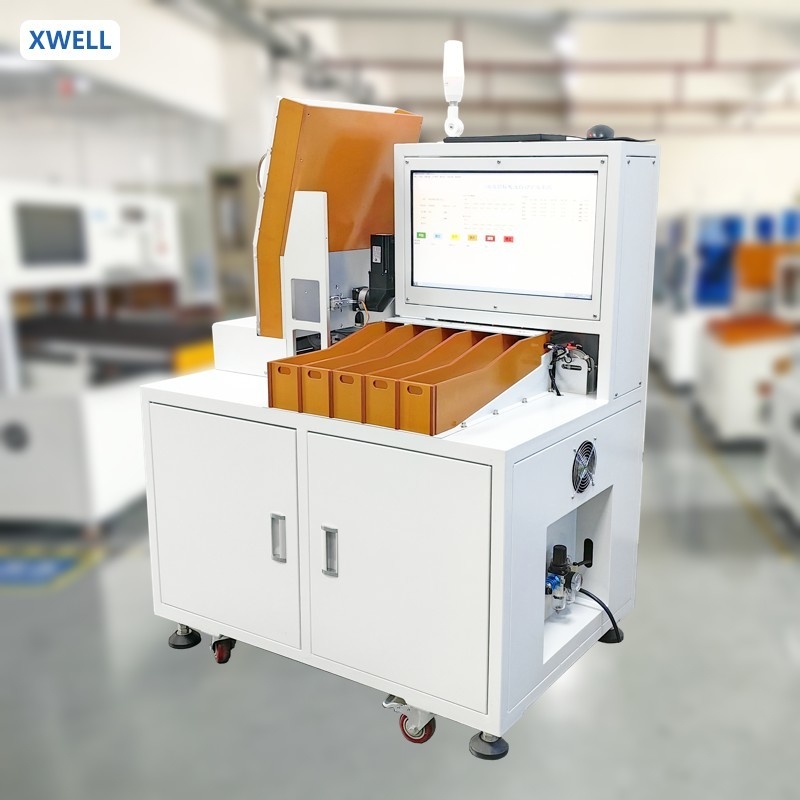

Cell Sorting Machine Details

5 Channels Lithium Cell Sorting Machine Cylindrical Battery Automatic 0

5 Channels Lithium Cell Sorting Machine Cylindrical Battery Automatic 1
