5 Channels 18650 26650 32650 21700 Cylindrical Battery Cell Testing
  • name

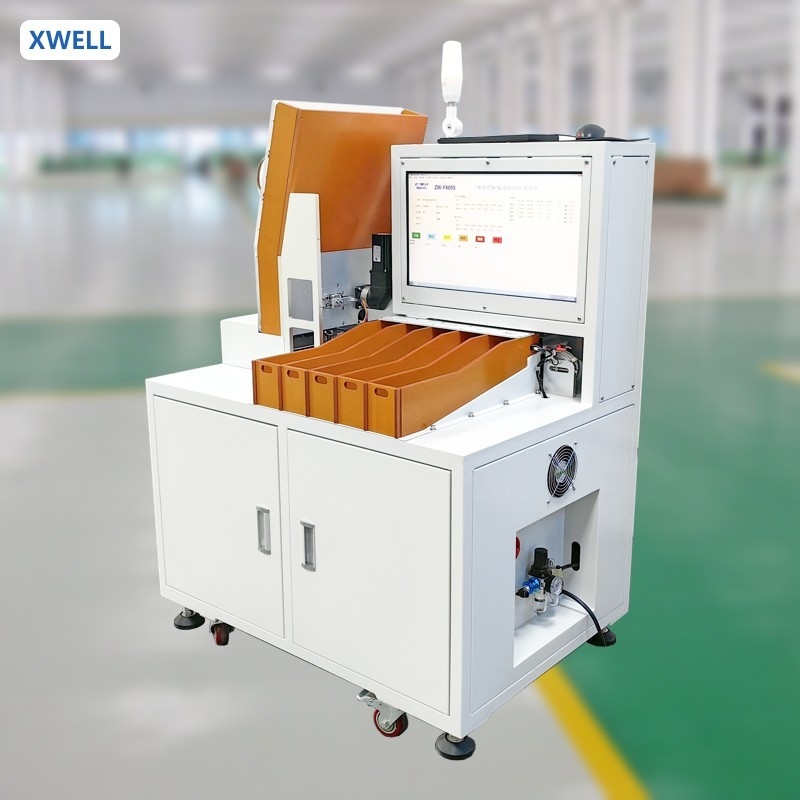

5 Channels 18650 26650 32650 21700 Cylindrical Battery Cell Testing

Brand Name: XWELL
Model Number: XW-BS05
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Core Components:
PLC
Applicable Industries:
Other, Battery
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Cylindrical Battery Cell Testing Machine

,

21700 Battery Cell Testing Machine

,

32650 Battery Cell Testing Machine

Product Description

5 Channels 18650 26650 32650 21700 Cylindrical Battery Cell Testing



Automatic Battery Sorting Machine

We can provide you with a full line of equipment for battery pack production We can provide you with the most competitive price directly from the factory We can provide you with the most professional after-sales service 7*24 h



 Features



  • Battery sorting machine is for batteries testing before battery pack assembling.

    Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.











Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 5 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 3000 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity 3000 pcs/h







Cell Sorting Machine Details



5 Channels 18650 26650 32650 21700 Cylindrical Battery Cell Testing 0



5 Channels 18650 26650 32650 21700 Cylindrical Battery Cell Testing 1
