5 Channels Universal Automatic Cylindrical Cell Sorter Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS05 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC | Applicable Industries: | Other, Battery |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Test Parameter: | AC Internal Resistance, DC Voltage | Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm |
| Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV | ||
| Highlight: | Universal Cylindrical Cell Sorter Machine,Automatic Cylindrical Cell Sorter Machine,5 Channels Cylindrical Cell Sorter Machine |
||
Product Description

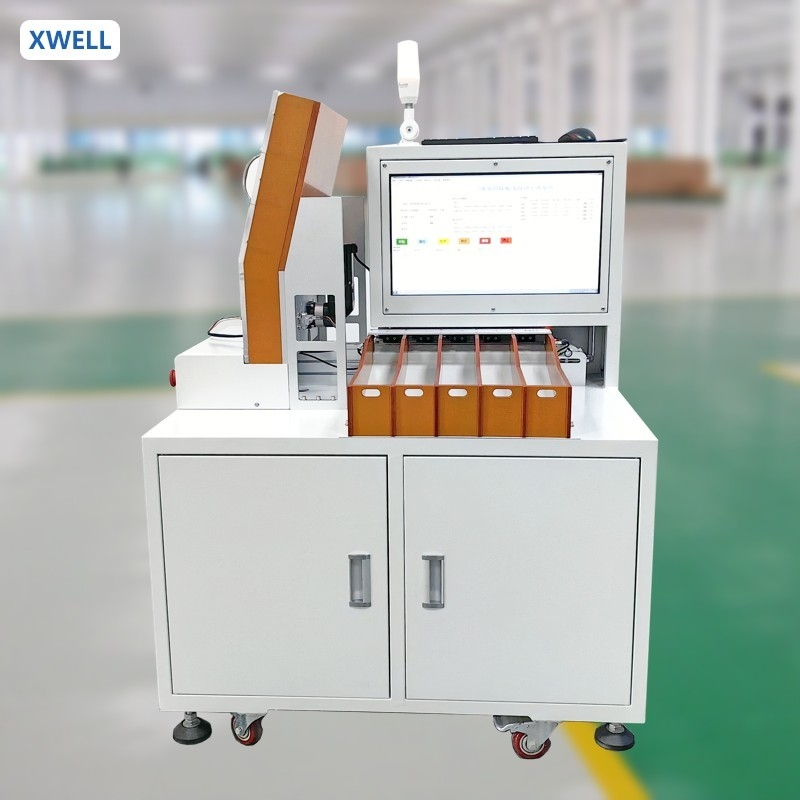

5 Channels Universal Automatic Cylindrical Cell Sorter Machine
Automatic Battery Sorting Machine
XW-BS05 is a high throughput automatic Battery Sorter/Selector for sorting cylindrical 18650, 26650 and 21700 battery cells by voltage and impedance upto 5 groups.
Features
- A must have equipment for Battery Pack Manufacturer!
- 5 Channel automatic cell sorter is designed to sort cylindrical 18650, 26650 and 21700 cells
- Sort by cell's voltage and impedance up to 5 groups
- Voltage measurement range: 0 ~ 10V ± 0.01% rdg (0.1 mV/scale)
- Impedance measurement range: 0 ~ 60mΩ ± 0.5 rdg (0.1mΩ/scale)
- Automatic sorting control
- Fast sorting speed (3000 batteries/hr)
- Easy to refill cells during the process
- Long post test cell trail
- 4 wheels design, easy to move the machine to any operating place.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
