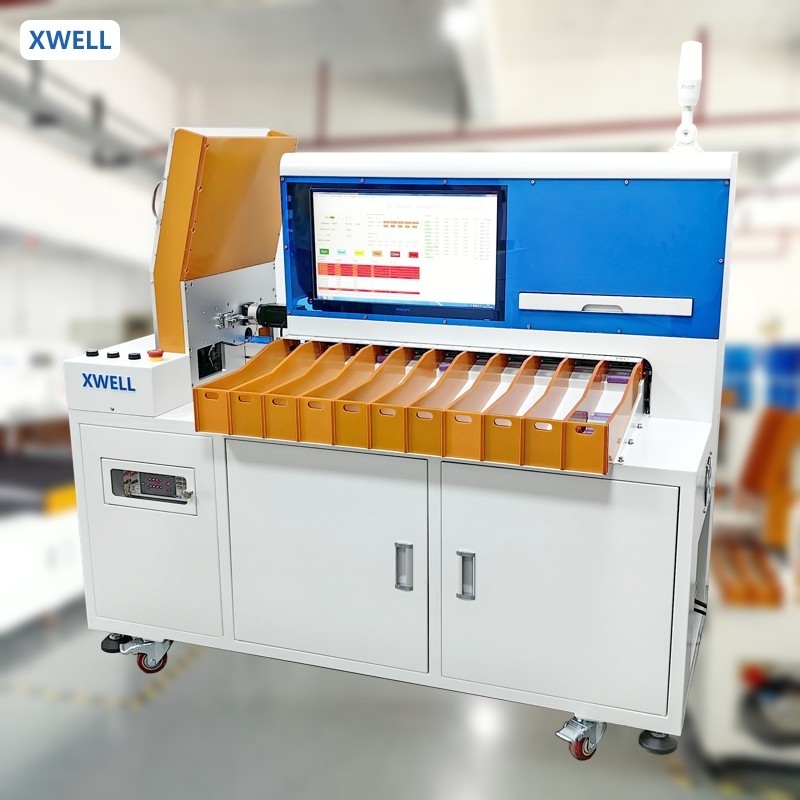

Automatic 11 Channel Battery Sorter Sorting Machine For Pasting Cylindrical Cell
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Energy Storage Application, Dynamic Application | Usage: | Battery Sorting |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Automatic Battery Cell Sorting Machine,11 Channel Battery Cell Sorting Machine,Pasting Cylindrical Cell Sorting Machine |
||
Product Description
Automatic 11 Channel Battery Sorter Sorting Machine For Pasting Cylindrical Cell
Feature
1,with high precision internal resistance, voltage, automatic test system.2,The device can accurately send the cell to the specified gear according to the set internal resistance voltage value.
3,Large hopper, can put 500 pcs cells at one time, high efficiency.
4,simple and clear operation interface, easy to operate, humanized design, easy to master.
5,Scope of application: cylindrical lithium battery (customized).
6,The sorting speed is fast, the stability is high, and the consistency of cells in each channel is effectively screened out..
3,Large hopper, can put 500 pcs cells at one time, high efficiency.
4,simple and clear operation interface, easy to operate, humanized design, easy to master.
5,Scope of application: cylindrical lithium battery (customized).
6,The sorting speed is fast, the stability is high, and the consistency of cells in each channel is effectively screened out..
Automatic Battery Sorting Machine
We can provide you with a full line of equipment for battery pack production.
We can provide you with the most competitive price directly from the factory.
We can provide you with the most professional after-sales service 7*24 hours.
| Product name | Auto sorting machine |
| Model No. | ACEY-AS11S |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80m, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01m | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L1430mm*W660mm*H1350mm |
| Weight |
<200Kg |
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
