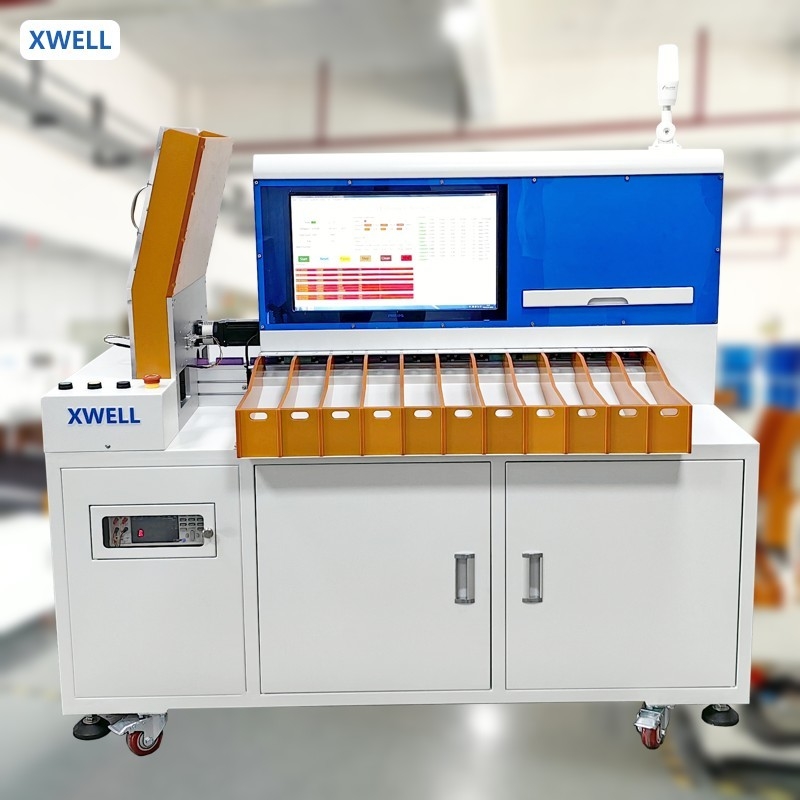

Automatic Battery Sorting Sorter Machine 11 Channels For 18650
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC | Brand Name: | XWELL |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | 18650 Battery Sorting Sorter Machine,11 Channels Battery Sorting Sorter Machine,Automatic Battery Sorting Sorter Machine |
||
Product Description
Automatic Battery Sorting Sorter Machine 11 Channels For 18650
Feature
XW-BS11 is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.is suitable for automatic sorting of large and medium-sized cylinders batteries.Can automatically sort the batteries according to the specified requirements, fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process.
Automatic Battery Sorting Machine
*Has the characteristics of rapid and accurate sorting, improves the quality and efficiency of battery sorting.
*Touch screen operation, easy and fast responding.
*Automatically sort the voltage and internal resistance of cylindrical batteries.
*The process detection signal is comprehensive and diverse.
| Product name | Auto sorting machine |
| Model No. | ACEY-AS11S |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 10 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80m, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01m | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L1430mm*W660mm*H1350mm |
| Weight |
<200Kg |
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
