Battery Cell Sorting Machine

11 Channels 18650 21700 32650 Automatic Cylindrical Battery Cell Sorter Sorting Machine

All Category

Battery Pack Production Machine

Lithium Battery Spot Welding Machine

11 Channels 18650 21700 32650 Automatic Cylindrical Battery Cell Sorter Sorting Machine

Brand Name:	XWELL
Model Number:	XW-BS11
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Core Components:

PLC, Engine, Bearing

Application Fields:

Battery

Packaging Details:

Wooden

Warranty:

1 Year

Efficiency:

3500-4000pcs/h

Power:

<1000W

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

18650 Battery Cell Sorter

Automatic Cylindrical Battery Cell Sorter

32650 Battery Cell Sorter

Product Description

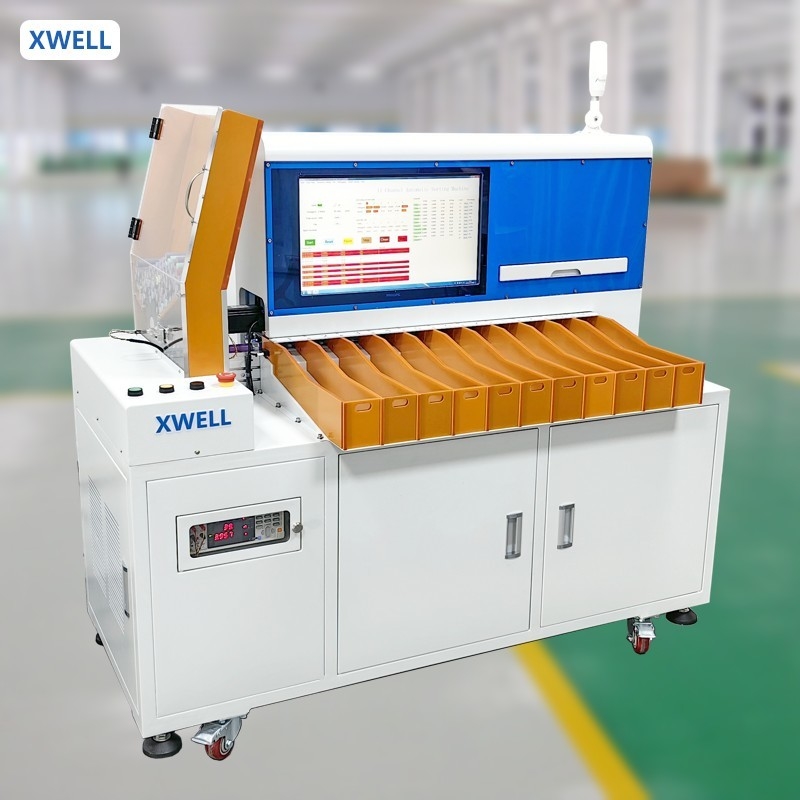

11 Channels 18650 21700 32650 Automatic Cylindrical Battery Cell Sorter Sorting Machine

Feature

1. Compact and reasonable equipment structure, beautiful appearance, small volume.
2. Simple equipment operation, workers can easily learning.
3. The equipment is controlled by PLC and PC. The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work efficiency, saving manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolled sheet metal, aluminum frame.
5. The device is equipped with universal movable casters, the device can easily move when it is displaced.

Technological Process
The battery resistance and voltage are set by the battery testing software of the upper computer, and the following functions are automatically completed by PLC:

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	11 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	4500 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	4500 pcs/h

Cell Sorting Machine Details
