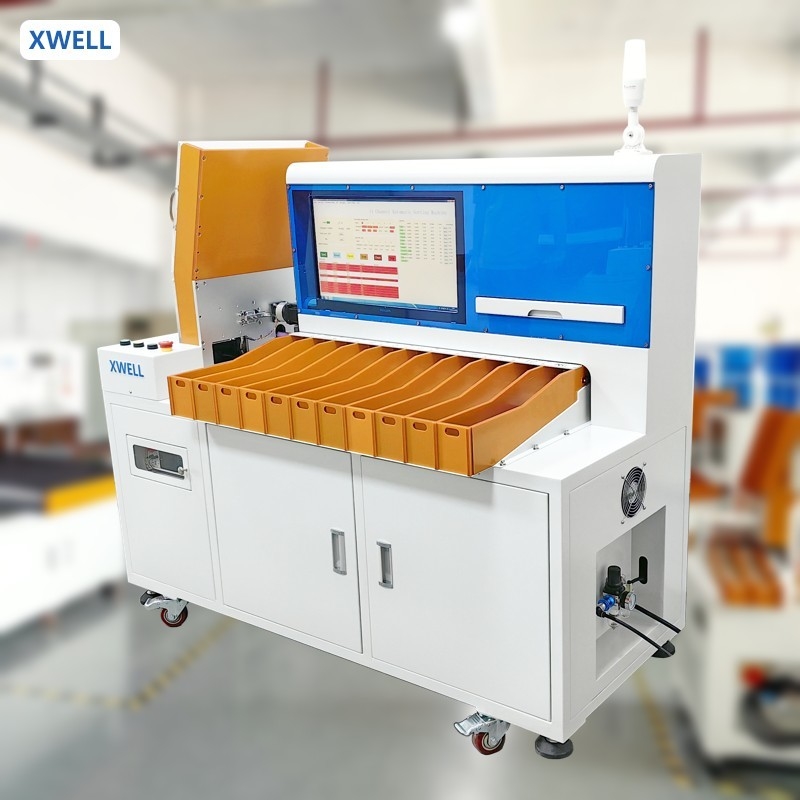

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery

Brand Name: XWELL
Model Number: XW-BS11
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Channel:
11
Controller:
Micro Computer Controller
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

32650 Battery Tester Sorter

,

Cylindrical Battery Tester Sorter

,

21700 Battery Tester Sorter

Product Description

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery





Introduction:

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.



How sorting machine works?
The battery sorting machine is composed of mechanical structure, feeding system, test system, control system, etc. First, put the battery into the bin, the battery roller drives the battery to the test position, the test probe contacts the positive and negative poles of the battery, the tester reads the internal resistance and voltage of the battery, the detector transmits the test results to the controller, and the controller puts the batteries with different parameters into different channels according to the settings.




Cell Sroting Machine Specification


Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell
(32140, 33138, 33140 )
Receiving Channel 11 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ
Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V
Accuracy:±0.1% rdg
Resolution: 0.01mV
Sorting Speed 4500 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity  4500 pcs/h




Cell Sorting Machine Details

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery 0

Cylindrical Battery Tester Sorter 18650 21700 32650 Battery 1
