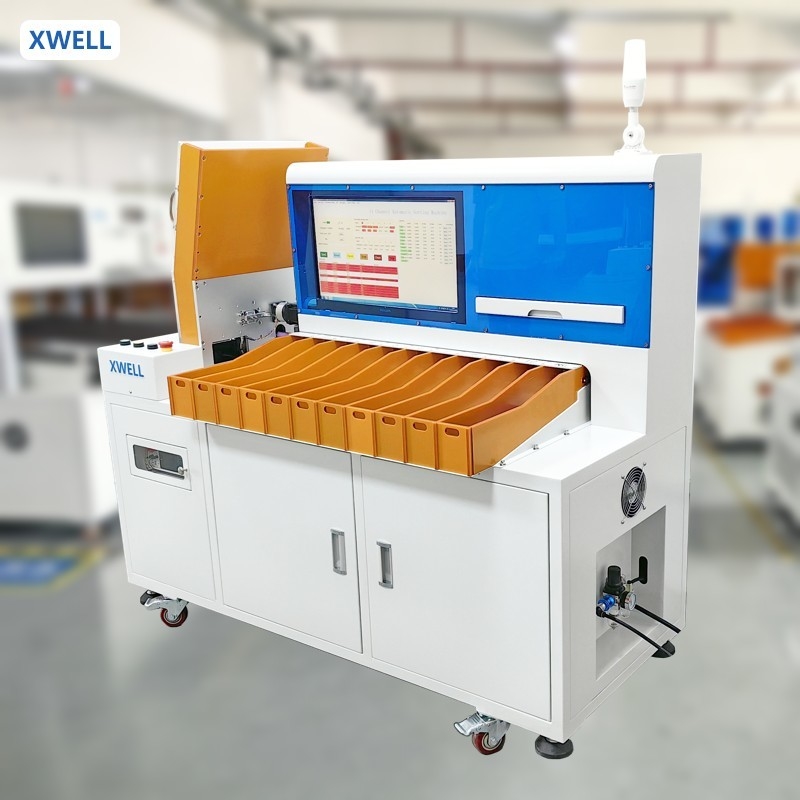

11 Channels Lithium Battery Automatic Sorter

Brand Name:	XWELL
Model Number:	XW-BS11
MOQ:	1pcs
Price:	USD 5000 - 6000 / pcs
Packaging Details:	Wooden box
Payment Terms:	T/T, Western Union, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Condition:

Machinery Test Report:

Provided

Packaging Details:

Wooden

Warranty:

1 Year

Efficiency:

3500-4000pcs/h

Power:

<1000W

Internal Resistance Test:

Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm

Voltage Test:

Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV

Supply Ability:

100 pcs per month

Highlight:

Automatic Lithium Battery Sorter

Lithium Battery Automatic Sorter

11 Channels Lithium Battery Sorter

Product Description

11 Channels Lithium Battery Automatic Sorter

Introduction:

XW-BS11 can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders

Functional description:
The 18650 battery 13 channel sorting machine is suitable for the voltage and internal resistance sorting test of the 18650 battery core which is divided by the battery core factory. The electrical control part of the sorting system adopts modular design, with high integration, good general purpose and convenient maintenance. The actuator adopts stepper motor control with high precision and good reliability. The number of equipment receiving slots is 13 slots, which can be arbitrarily set voltage and internal resistance value. The sorting efficiency is high, and the battery can be accurately sent to the specified gear according to the set internal resistance and voltage value. The equipment adopts the silo type loading, the cylinder automatically divides the material, and the personnel manually collects the material. Realize the automation of 18650 cell sortin

Cell Sroting Machine Specification

Voltage Supply	220V±10%/50Hz±10%
Power	<1000W
Display Screen	Computer software user interface
Battery Types	Cylindrical Cell (32140, 33138, 33140 )
Receiving Channel	11 channels
Test Parameter	AC internal resistance, DC voltage
Internal Resistance Test	Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm
Voltage Test	Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV
Sorting Speed	4500 pcs/h
Weight	<200KG
Dimension	1120mm(L)880mm(W)1250mm(H)
Tester	HK3561
Productivity	4500 pcs/h

Cell Sorting Machine Details

11 Channels Lithium Battery Automatic Sorter 0

11 Channels Lithium Battery Automatic Sorter 1
