18650 21700 Cell Automatic 11 Channel Battery Cell Sorting And Testing Machine With Touch Screen

Brand Name: XWELL
Model Number: XW-BS11
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model Number:
MD-BS11
Color:
White
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

Automatic Battery Cell Sorting Machine

,

11 Channel Battery Cell Sorting Machine

,

Touch Screen Battery Cell Sorting Machine

Product Description

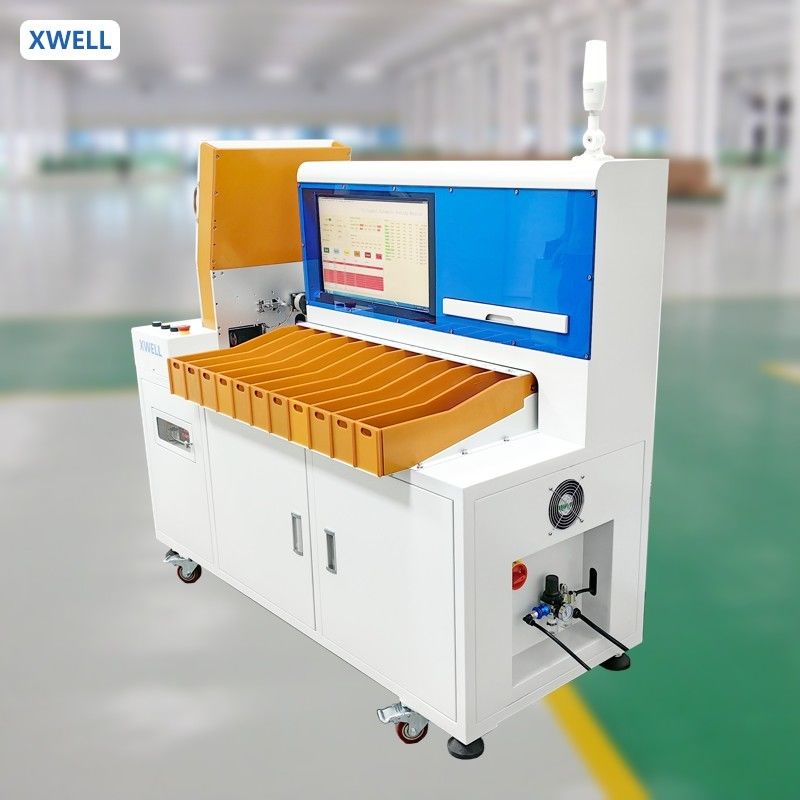

18650 21700 Cell Automatic 11 Channel Battery Cell Sorting And Testing Machine With Touch Screen





Automatic Battery Sorting Machine

The Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to diffierent channels according to the setting.





Advantages

1. Stable control system

2. High configuration regulator

3. High Precision Work Procedure

4. High cost performance ratio of products





Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 11 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 4500 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity  4500 pcs/h







Cell Sorting Machine Details



18650 21700 Cell Automatic 11 Channel Battery Cell Sorting And Testing Machine With Touch Screen 0



18650 21700 Cell Automatic 11 Channel Battery Cell Sorting And Testing Machine With Touch Screen 1
