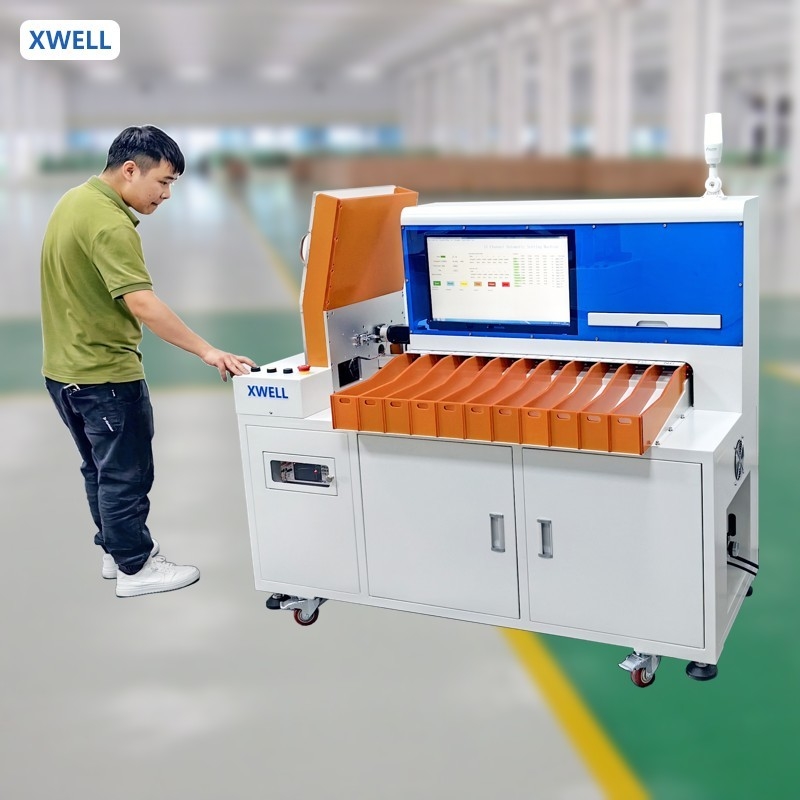

11 Channel 18650 26650 Cylindrical Battery Sticking And Sorting Machine Cell Selector Equipment For Lithium Ion
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 5000 - 6000 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Core Components: | PLC | Test Parameter: | AC Internal Resistance, DC Voltage |
|---|---|---|---|
| Packaging Details: | Wooden | Warranty: | 1 Year |
| Efficiency: | 3500-4000pcs/h | Power: | <1000W |
| Internal Resistance Test: | Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm | Voltage Test: | Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV |
| Highlight: | Lithium Ion Battery Cell Sorting Machine,18650 Battery Cell Sorting Machine,26650 Battery Cell Sorting Machine |
||
Product Description
11 Channel 18650 26650 Cylindrical Battery Sticking And Sorting Machine Cell Selector Equipment For Lithium Ion
Automatic Battery Sorting Machine
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is
responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving
manpower, good product performance.
Structure of Sorter
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types |
Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 11 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test |
Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test |
Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 4500 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 4500 pcs/h |
Cell Sorting Machine Details
