Good price online

products details

Home > Products >
Battery Cell Sorting Machine
>
Battery Sorting Machine Automatic 11 Channel IR Voltage Cell Sorter For Cylindrical Battery Pack18650 21700
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
Contact Us
Mr. Sammy Qin
sammyqin@outlook.com
+8618620492985
wechat +8618620492985
Contact Now
  • name
  • name

Battery Sorting Machine Automatic 11 Channel IR Voltage Cell Sorter For Cylindrical Battery Pack18650 21700

Brand Name: XWELL
Model Number: XW-BS11
MOQ: 1pcs
Price: USD 5000 - 6000 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Machine Weight:
250Kg
After-sales Service Provided:
Video Technical Support
Packaging Details:
Wooden
Warranty:
1 Year
Efficiency:
3500-4000pcs/h
Power:
<1000W
Test Parameter:
AC Internal Resistance, DC Voltage
Internal Resistance Test:
Test Range: 0-80mΩ Accuracy: +/- 0.5% Rdg Display Resolution: 0.01 Milliohm
Voltage Test:
Test Range: 0-8V Accuracy:±0.1% Rdg Resolution: 0.01mV
Supply Ability:
100 pcs per month
Highlight:

11 Channel Battery Sorting Machine

,

IR Voltage Cell Battery Sorting Machine

,

Automatic Battery Sorting Machine

Product Description

Battery Sorting Machine Automatic 11 Channel IR Voltage Cell Sorter For Cylindrical Battery Pack18650 21700

Automatic Battery Sorting Machine





 Battery Sorting Machine is mainly used for internal-resistance(IR) and voltage testing, and sort the cells to difference channels according to the setting.





Why you need sorting machine?



Our sorting machine can greatly improve production efficiency, effectively and accurately sort the internal resistance and voltage of battery cells from different places, saving labor costs.





Cell Sroting Machine Specification



Voltage Supply 220V±10%/50Hz±10%
Power <1000W
Display Screen Computer software user interface
Battery Types

Cylindrical Cell

(32140, 33138, 33140 )
Receiving Channel 11 channels
Test Parameter AC internal resistance, DC voltage
Internal Resistance Test

Test range: 0-80mΩ

Accuracy: +/- 0.5% rdg

Display resolution: 0.01 milliohm
Voltage Test

Test range: 0-8V

Accuracy:±0.1% rdg

Resolution: 0.01mV
Sorting Speed 4500 pcs/h
Weight <200KG
Dimension 1120mm(L)*880mm(W)*1250mm(H)
Tester HK3561
Productivity  4500 pcs/h







Cell Sorting Machine Details

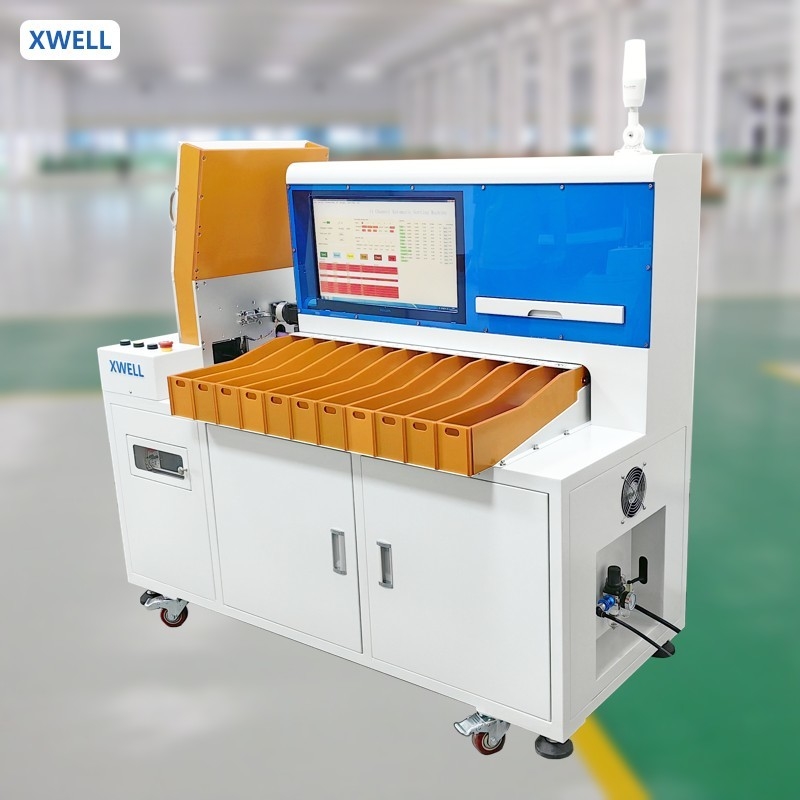

Battery Sorting Machine Automatic 11 Channel IR Voltage Cell Sorter For Cylindrical Battery Pack18650 21700 0



Battery Sorting Machine Automatic 11 Channel IR Voltage Cell Sorter For Cylindrical Battery Pack18650 21700 1
