Our sorting machine can greatly improve production efficiency, effectively and accurately sort the internal resistance and voltage of battery cells from different places, saving labor costs.

How sorting machine works?

1. Manually install the battery into the unloading belt

2. The battery flows into the scanning position for scanning

3. The battery flows into the test position for testing

4. The robot grabs the corresponding channel for battery sorting

Product Features

Product name	Auto sorting machine
Model No.	MD-BS11
Voltage Supply	single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types	18650(other sizes available)
Receiving channel	4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters	AC internal resistance, DC voltage
Internal resistance test	Test range: 80mΩ,
	Accuracy: ±0.5%rdg
	Display resolution: 0.01mΩ
Voltage test	Test range: 8V
	Accuracy :±0.015%rdg,
	Display resolution: 0.01mV
Sorting speed	80ppm
AI.Set function	Intelligent one-button setting, specially designed for new functions of battery pack.
Size	L960mmW540mmH1350mm
Weight	<150Kg

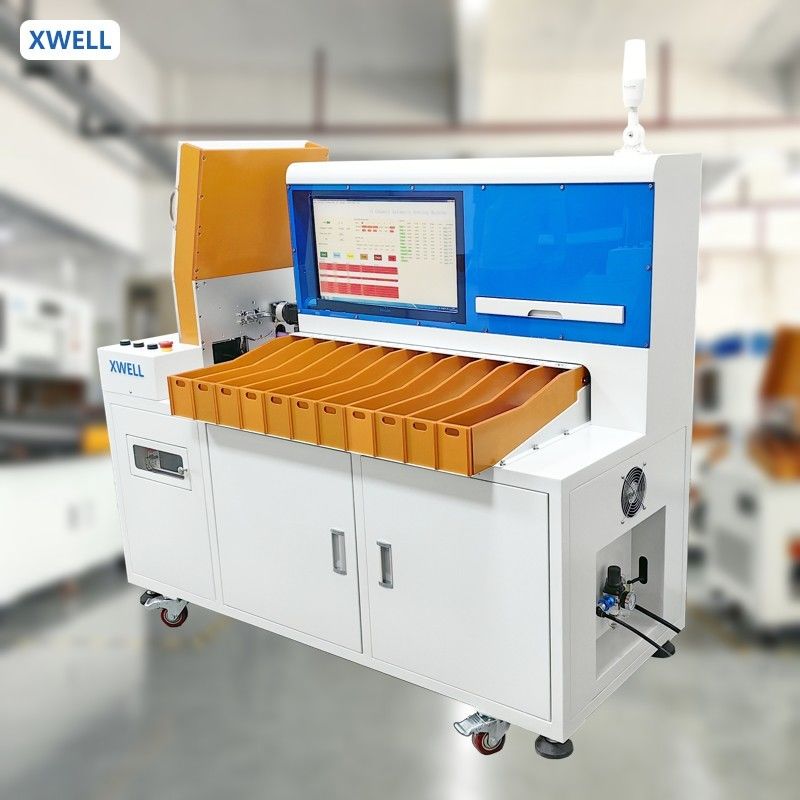

Sorting machine structure

Battery Sort Machine Cylindrical Cell Selector Battery Sorting 18650 21700 Sorting Machine Sorter For Lithium Ion Batter 0
