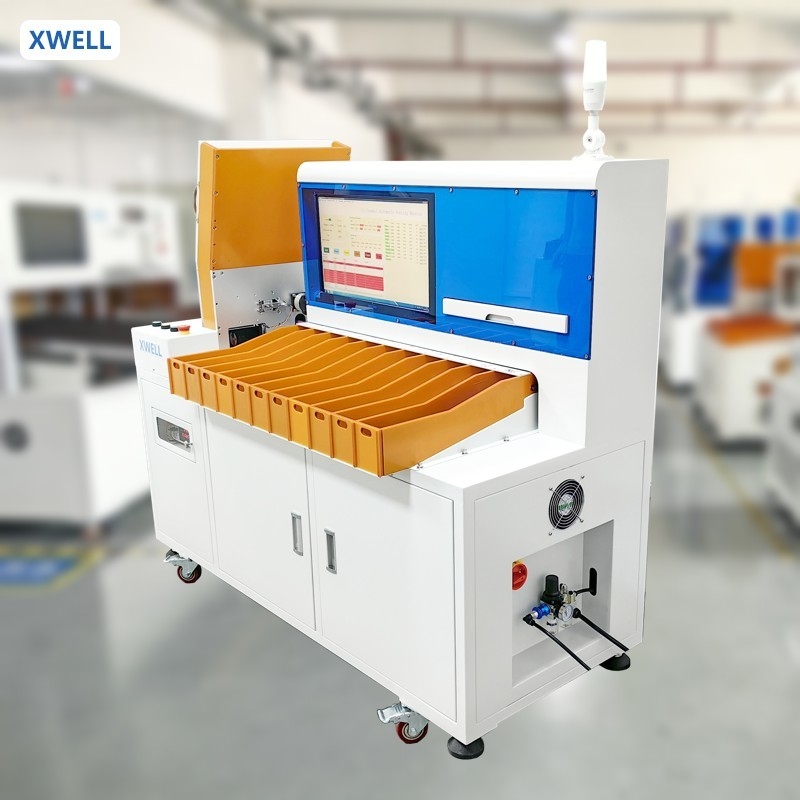

11 Channel 18650 26650 Cylindrical Battery Sticking And Sorting Machine Cell Selector Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Application: | Battery Cell |
|---|---|---|---|
| Internal Resistance Tester: | HK3561 Or HIOKI3561 | Air Compressor: | Optional |
| After Warranty Service: | Online Support | Battery Types: | 18650(other Sizes Available) |
| Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. | Test Parameters: | AC Internal Resistance, DC Voltage |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | 11 Channel Battery Cell Sorting Machine,Cylindrical Battery Cell Sorting Machine,26650 Battery Cell Sorting Machine |
||
Product Description
11 Channel 18650 26650 Cylindrical Battery Sticking And Sorting Machine Cell Selector Equipment
Product Description
1.Compact and reasonable equipment structure, beautifulappearance, small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is
responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving
Characteristic
We can provide you with a full line of equipment for battery pack production. We can provide you with the most competitive price directly from the factory. We can provide you with the most professional after-sales service 7*24 h
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
