Good price online

products details

Home > Products >
Battery Cell Sorting Machine
>
Battery Cell Sorter 32650 Selector 21700 Separation Grading 18650 Sorting Machine
All Category

Battery Pack Welding Machine

Battery Pack Production Machine

Battery Pack Testing Machine

Lithium Battery Spot Welding Machine

Battery Laser Welding Machine

Battery Raw Material

Ultrasonic Battery Welder

BMS Testing Machine

Battery Aging Machine

Battery Cell Sorting Machine

Battery Cell Grading Machine

Battery Cell Sticking Machine
Contact Us
Mr. Sammy Qin
sammyqin@outlook.com
+8618620492985
wechat +8618620492985
Contact Now

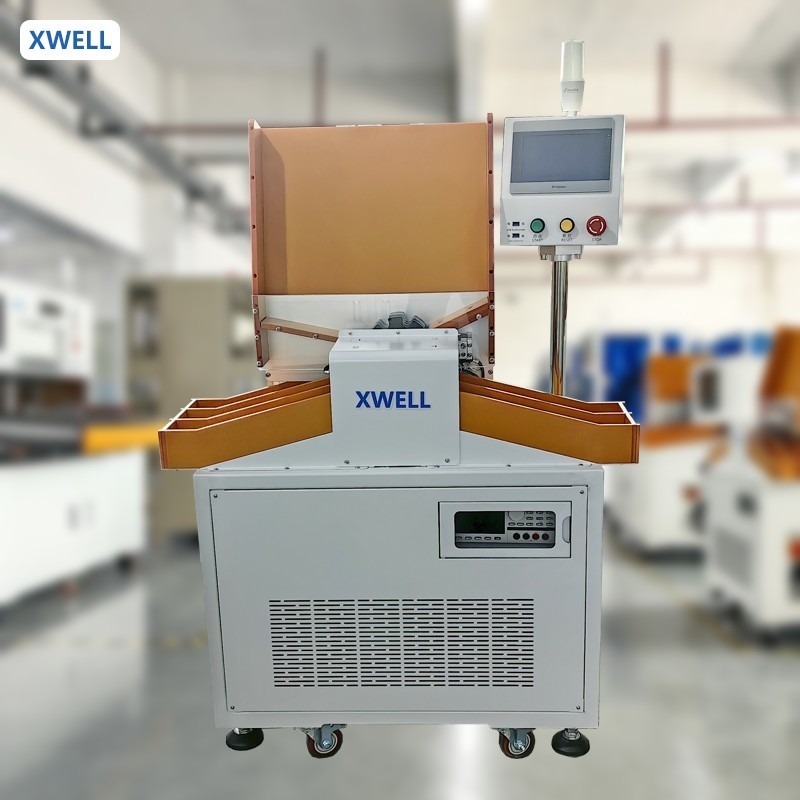

Battery Cell Sorter 32650 Selector 21700 Separation Grading 18650 Sorting Machine
  • name

Battery Cell Sorter 32650 Selector 21700 Separation Grading 18650 Sorting Machine

Brand Name: XWELL
Model Number: MD-BS11
MOQ: 1pcs
Price: USD 3000 - 7900 / pcs
Packaging Details: Wooden box
Payment Terms: T/T, Western Union, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Place Of Origin:
Guangdong, China
Voltage:
220V/50HZ
Internal Resistance Tester:
HK3561 Or HIOKI3561
Air Compressor:
Optional
After Warranty Service:
Online Support
Battery Types:
18650(other Sizes Available)
Receiving Channel:
4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value.
Test Parameters:
AC Internal Resistance, DC Voltage
AI.Set Function:
Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack.
Size:
L960mm*W540mm*H1350mm
Supply Ability:
100 pcs per month
Highlight:

18650 Battery Cell Sorter

,

21700 Battery Cell Sorter

,

32650 Battery Cell Sorter

Product Description

Battery Cell Sorter 32650 Selector 21700 Separation Grading 18650 Sorting Machine


Product Description



We can provide you with a full line of equipment for battery pack production. We can provide you with the most competitive price directly from the factory. We can provide you with the most professional after-sales service 7*24 hour




Characteristic

1.Compact and reasonable equipment structure, beautifulappearance, small volume.
2.Simple equipment operation, workers can easily learning
3.The equipment is controlled by PLC and PC.The PLC is
responsible for battery feeding, battery handling and batterysorting.The PC is responsible for battery testing data collection,voltage internal resistance rating, high work efficiency, saving
manpower, good product performance.
4. Equipment materials are made of high quality thick cold-rolledsheet metal, aluminum frame.
5. The device is equipped with universal movable casters,the device can easily move when it is displaced.





Product Features



Product name Auto sorting machine
Model No. MD-BS11
Voltage Supply single-phase ~220V±10%/50Hz±10%, power <800W
Battery Types 18650(other sizes available)
Receiving channel 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value.
Test parameters AC internal resistance, DC voltage
Internal resistance test Test range: 80mΩ,
Accuracy: ±0.5%rdg
Display resolution: 0.01mΩ
Voltage test Test range: 8V
Accuracy :±0.015%rdg,
Display resolution: 0.01mV
Sorting speed 80ppm
AI.Set function Intelligent one-button setting, specially designed for new functions of battery pack.
Size L960mm*W540mm*H1350mm
Weight <150Kg



Sorting machine structure

Battery Cell Sorter 32650 Selector 21700 Separation Grading 18650 Sorting Machine 0
