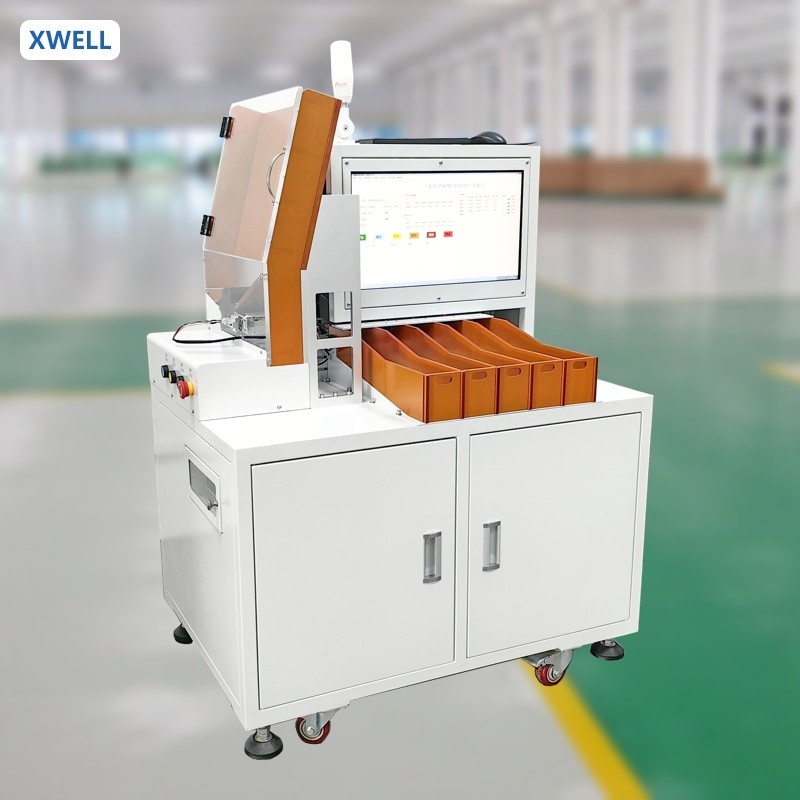

18650 26650 21700 32650 Cylindrical Cell Selector 11 Channel Sorting Machine For Battery Pack Assembly Line
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| The Discharge Rate: | Cylinder Cell Sorting Machine | Instruction: | Precision Voltage Resistance Tester (optional) |
|---|---|---|---|
| Internal Resistance Tester: | HK3561 Or HIOKI3561 | Air Compressor: | Optional |
| After Warranty Service: | Online Support | Battery Types: | 18650(other Sizes Available) |
| Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. | Test Parameters: | AC Internal Resistance, DC Voltage |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | 32650 Battery Cell Sorting Machine,18650 Battery Cell Sorting Machine,21700 Battery Cell Sorting Machine |
||
Product Description
18650 26650 21700 32650 Cylindrical Cell Selector 11 Channel Sorting Machine For Battery Pack Assembly Line
Product Description
Cylindrical battery sorter is a sorting equipment used to test the internal resistance, voltage and other parameters of cylindrical battery. The machine has its own precise internal resistance and voltage test system. According to the internal resistance set on the computer, the voltage value sends the battery to the designated gear. The machine has simple and generous structure design and stable performance. We can also offer CNC welding machine. Welcome your inquiry to us for more details.
Characteristic
1. With automatic feeding system, the feeding speed is high and stable, no impact and scratch on the battery, and suitable for direct manual feeding of different feeding boxes, which can realize uninterrupted production.
2. Cylindrical battery sorter adopts high precision and high stability internal resistance tester, and feeding part adopts high speed and high stability feeding mechanism.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
