Cylindrical Battery Cell Sorter Lithium-Ion Battery Scan Code Sticker Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Warranty: | 1 Year |
|---|---|---|---|
| Internal Resistance Tester: | HK3561 Or HIOKI3561 | Air Compressor: | Optional |
| After Warranty Service: | Online Support | Battery Types: | 18650(other Sizes Available) |
| Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. | Test Parameters: | AC Internal Resistance, DC Voltage |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | Cylindrical Battery Cell Sorter,Lithium-Ion Battery Cell Sorter,Scan Code Sticker Battery Cell Sorter |
||
Product Description

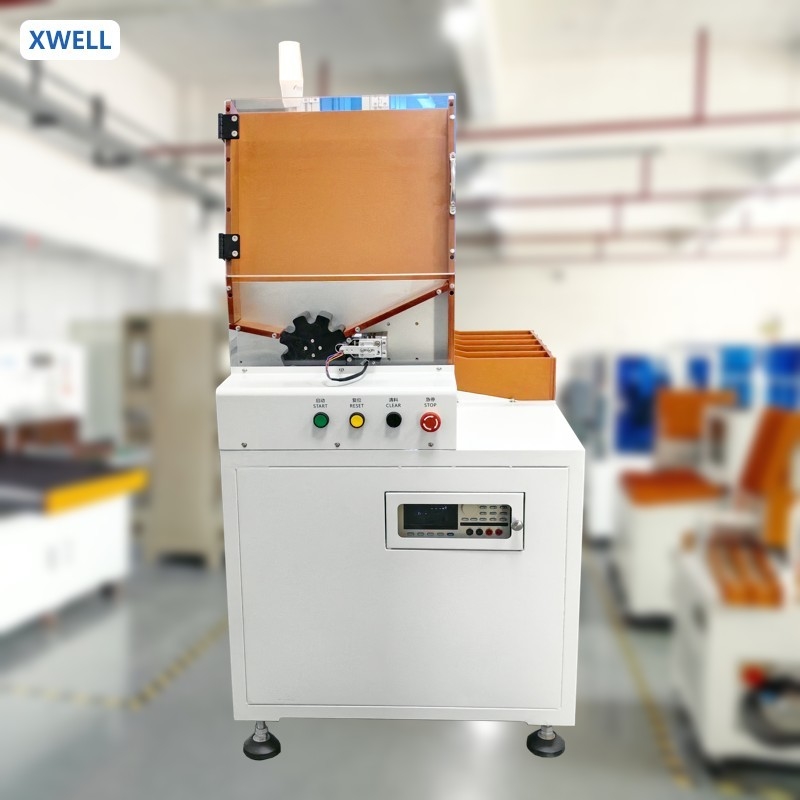

Cylindrical Battery Cell Sorter Lithium-Ion Battery Scan Code Sticker Sorting Machine
Product Description
XWELL have a professional engineering and technical service team, provide lithium battery PACK automatic production line, lithium battery assembly technical guidance, and technical training.
We can provide you with a full line of equipment for battery pack production
XWEL can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting. It is suitable for automatic sorting of large and medium-sized cylinders batteries
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
