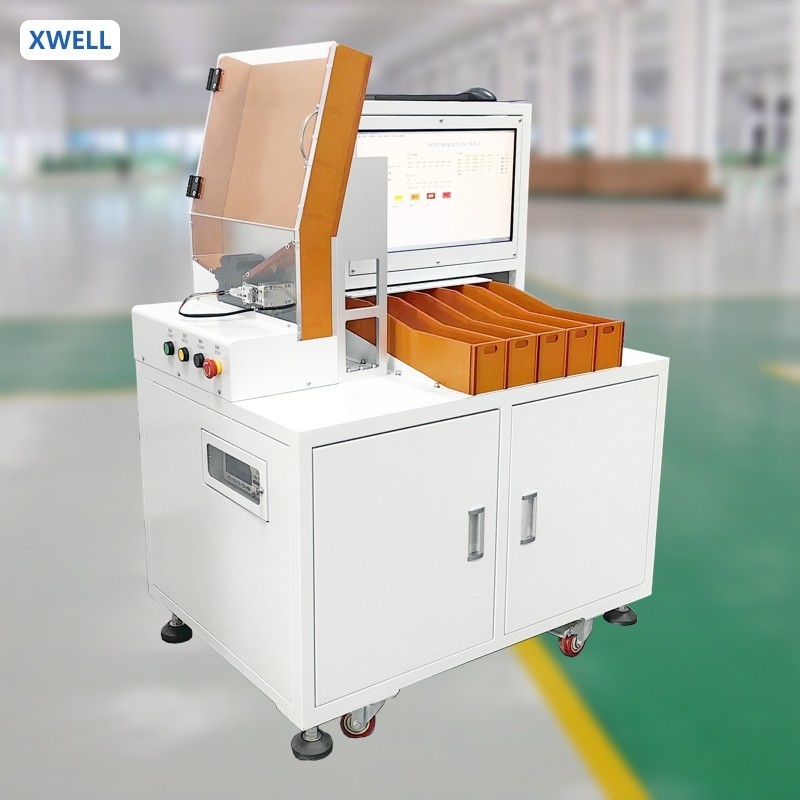

Lithium Cylindrical Battery Pack Sorter Selector Automatic Separation Grading Sorting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | MD-BS11 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 3000 - 7900 / pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, France, Germany, Viet Nam, Indonesia, India, Russia, South Korea, Malaysia | Voltage Accuracy: | ±0.1 RDG |
|---|---|---|---|
| Internal Resistance Tester: | HK3561 Or HIOKI3561 | Air Compressor: | Optional |
| After Warranty Service: | Online Support | Battery Types: | 18650(other Sizes Available) |
| Receiving Channel: | 4 Sorting & Matching Group Channels, 1 Unqualified Product Channel, Available Arbitrary Set For Each Channel's Sorting Value. | Test Parameters: | AC Internal Resistance, DC Voltage |
| AI.Set Function: | Intelligent One-button Setting, Specially Designed For New Functions Of Battery Pack. | Size: | L960mm*W540mm*H1350mm |
| Highlight: | Automatic Battery Pack Sorter,Cylindrical Battery Pack Sorter,Automatic Cylindrical Battery Pack Sorter |
||
Product Description
Lithium Cylindrical Battery Pack Sorter Selector Automatic Separation Grading Sorting Machine
Product Description
Battery sorting machine is for batteries testing before battery pack assembling.
Can test battery voltage and internal resistance, and sorting cells to different bracket with different voltage and internal resistance.
1) The equipment has compact and reasonable structure, beautiful appearance and small space occupation.
2) The equipment is simple to operate, and no professional training is required. The workers can easily master it.
3) The equipment is controlled by PLC + PC. PLC is responsible for battery feeding, transporting and collecting. PC is responsible for data acquisition of battery test instruments, voltage resistance classification, easy operation, high efficiency, labor saving and good product performance.
Product Features
| Product name | Auto sorting machine |
| Model No. | MD-BS11 |
| Voltage Supply | single-phase ~220V±10%/50Hz±10%, power <800W |
| Battery Types | 18650(other sizes available) |
| Receiving channel | 4 sorting & matching group channels, 1 unqualified product channel, available arbitrary set for each channel's sorting value. |
| Test parameters | AC internal resistance, DC voltage |
| Internal resistance test | Test range: 80mΩ, |
| Accuracy: ±0.5%rdg | |
| Display resolution: 0.01mΩ | |
| Voltage test | Test range: 8V |
| Accuracy :±0.015%rdg, | |
| Display resolution: 0.01mV | |
| Sorting speed | 80ppm |
| AI.Set function | Intelligent one-button setting, specially designed for new functions of battery pack. |
| Size | L960mm*W540mm*H1350mm |
| Weight | <150Kg |
Sorting machine structure
