Lithium Battery Pouch Cell Capacity Grading Machine For Charging Discharging Tester
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Current Range: | 10A 20A 30A | Function: | Charging Test |
|---|---|---|---|
| Advantage: | High Efficiency | Support Battery: | AAA, AA |
| Place Of Origin: | China | Applicable Industries: | Energy & Mining |
| Voltage Testing Range: | AC 220V ±5% 50HZ | Channels: | 512 |
| Highlight: | Lithium Battery Pouch Cell Grading Machine,Pouch Cell Capacity Grading Machine |
||
Product Description
Lithium Battery Pouch Cell Capacity Grading Machine For Charging Discharging Tester
Battery Pack Charging & Discharging Tester Machine
XW-02 mainly composed of a communication interface and a battery detection cabinet. The battery testing cabinet is composed of battery clamp and a plate body to placing fixture, a constant current constant voltage source, a registration control circuit, a sampling circuit, a single chip microcomputer and a control panel.
Product Advantage
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;
F) Set operator authority and operate in different levels;
Display charge discharge curve and cycle chart;
Structure Of Equipment
| Model | XW-02 | |||
| Number Of Device Channels | 256 channels | |||
| Overall Dimension | Width 514.4mm× Depth 1684mm× Height 1840mm | |||
| Color | Standard off-white or off-black (customizable) | |||
| Jig Form | 65 Blue & white split clamp | |||
| Fixture Spacing | 150mm Battery spacing | |||
| Support Battery Specifications | Battery length: 0-180mm, width: 0-150mm, thickness: 8-15MM; | |||
| Battery tab center distance: 0-150mm | ||||
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ | |||
| Power Factor | 0.99@ 220VAC, full load, grid THDu ≤2% | |||
| Current Harmonic | <5%@ 220VAC, full load, grid THDu ≤2% | |||
| Power Consumption | ≤15 KW | |||
| Work Environment | Indoors, temperature is 10-30℃ under air convection. | |||
| Heat-Dissipating Method | Air cooling | |||

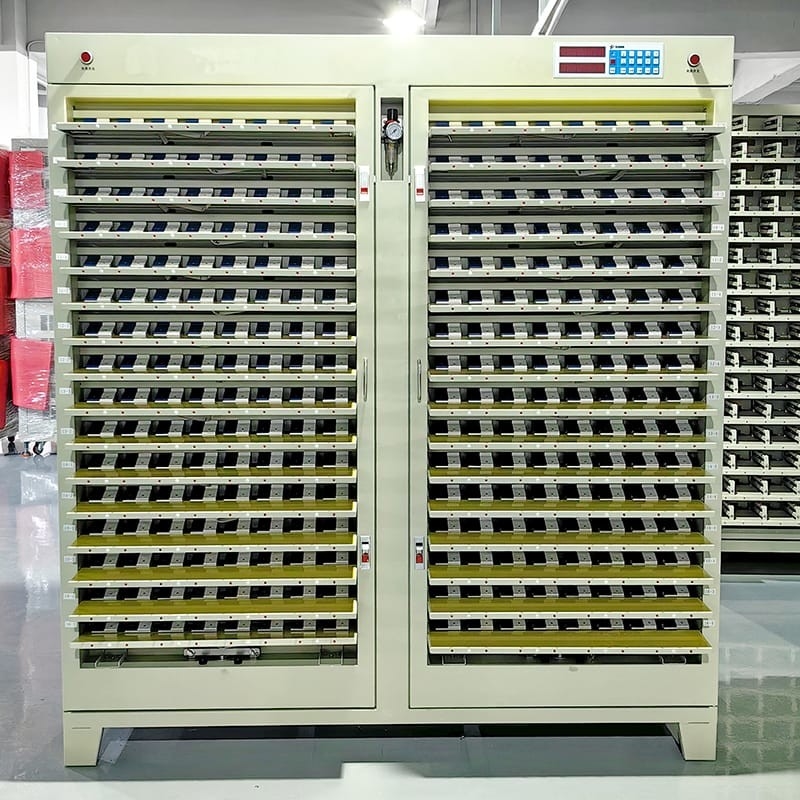

Piture:
