| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-02 |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Voltage Measurement Range: | DC100-4500mV | Place Of Origin: | China |
|---|---|---|---|
| Applicable Industries: | Energy & Mining | Voltage Testing Range: | AC 220V ±5% 50HZ |
| Voltage Supply: | 96,128,256,512,768 | Current Range: | 10A 20A 30A |
| Highlight: | 512 Channel Battery Capacity Tester Machine,Cylindrical Cell Battery Capacity Tester Machine,5V Battery Capacity Tester Machine |
||
512 Channel Battery Testing Equipment is a popular newly developed battery testing system for Li-ion cells, LIPB, Ni-MH cells, Ni-Cd cells.
This Equipment can be used as research machine, as cell positive /cathode pole material, battery cycle life testing etc.
This Equipment also can be used in pilot run period and in quality assurance department, since it has functions as formatting cells, grading capacity, testing cells group,checking battery pack, and processing test data,etc.
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
Structure Of Equipment
| Model | XW-02 | |||
| Number Of Device Channels | 256 channels | |||
| Overall Dimension | Width 514.4mm× Depth 1684mm× Height 1840mm | |||
| Color | Standard off-white or off-black (customizable) | |||
| Jig Form | 65 Blue & white split clamp | |||
| Fixture Spacing | 150mm Battery spacing | |||
| Support Battery Specifications | Battery length: 0-180mm, width: 0-150mm, thickness: 8-15MM; | |||
| Battery tab center distance: 0-150mm | ||||
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ | |||
| Power Factor | 0.99@ 220VAC, full load, grid THDu ≤2% | |||
| Current Harmonic | <5%@ 220VAC, full load, grid THDu ≤2% | |||
| Power Consumption | ≤15 KW | |||
| Work Environment | Indoors, temperature is 10-30℃ under air convection. | |||
| Heat-Dissipating Method | Air cooling | |||

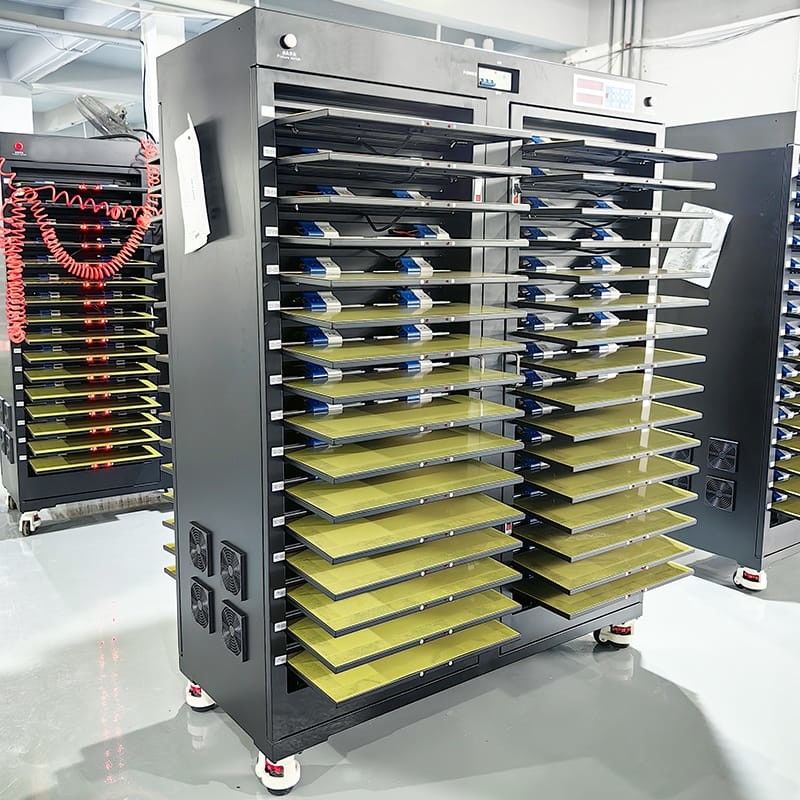

Piture:
