1.Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software, communication
interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture,
charging, constant current and constant voltage source discharge constant current source, storage control circuit, current
sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.
 |
Battery Charge Discharge Test 5V 10A 20a 256 Ch 33140 Lithium Battery Pouch Cell Capacity Grading Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | USD3000-5000/PCS |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 PCS a month |
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Application: | Capacity Tester |
|---|---|---|---|
| Product Name: | Pouch Battery Capacity Testing Equipment | Current Range: | 10A 20A 30A |
| Battery Type: | Soft Pack Battery | Shipping: | By Sea |
| Type: | Voltage, Current | Voltage Testing Range: | DC 0~5V |
| Highlight: | 10A Battery Cell Grading Machine,20a Battery Cell Grading Machine,256 Ch Battery Cell Grading Machine |
||
Product Description
Battery Charge Discharge Test 5V 10A 20a 256 Ch 33140 Lithium Battery Pouch Cell Capacity Grading Machine
Battery Pack Charging & Discharging Tester Machine
Product Advantage
We provide all kind of lithium battery pack assembly machines and solutions with good quality and services. Our products including: 1.IR tester 2.Capacity tester for cylindrical &prismatic&polymer cells 3.BMS tester
Structure Of Equipment
| Model | XW-02 | |||
| Number Of Device Channels | 256 channels | |||
| Overall Dimension | Width 514.4mm× Depth 1684mm× Height 1840mm | |||
| Color | Standard off-white or off-black (customizable) | |||
| Jig Form | 65 Blue & white split clamp | |||
| Fixture Spacing | 150mm Battery spacing | |||
| Support Battery Specifications | Battery length: 0-180mm, width: 0-150mm, thickness: 8-15MM; | |||
| Battery tab center distance: 0-150mm | ||||
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ | |||
| Power Factor | 0.99@ 220VAC, full load, grid THDu ≤2% | |||
| Current Harmonic | <5%@ 220VAC, full load, grid THDu ≤2% | |||
| Power Consumption | ≤15 KW | |||
| Work Environment | Indoors, temperature is 10-30℃ under air convection. | |||
| Heat-Dissipating Method | Air cooling | |||

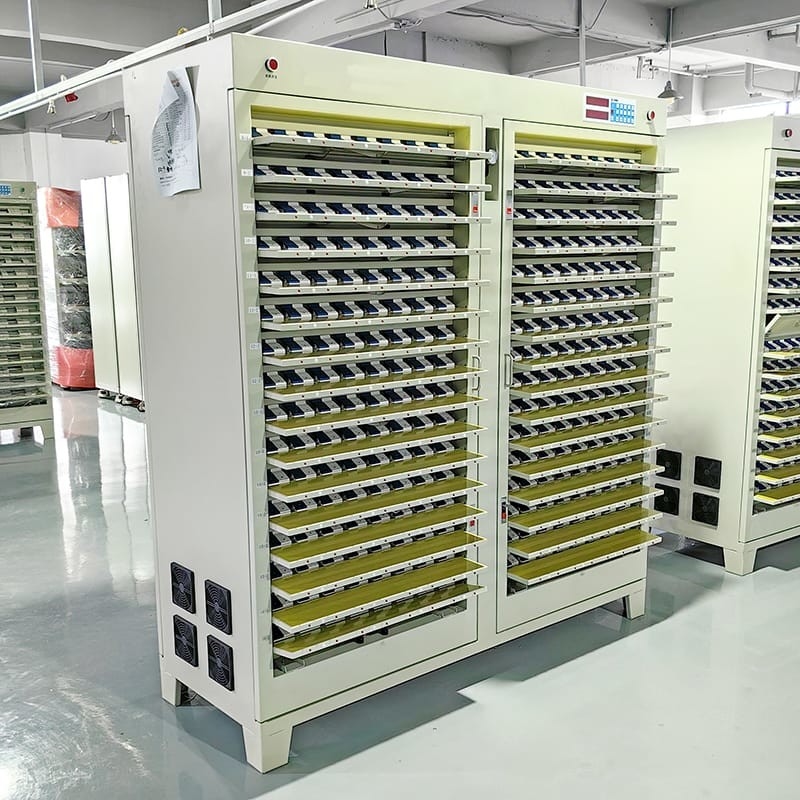

Piture:
