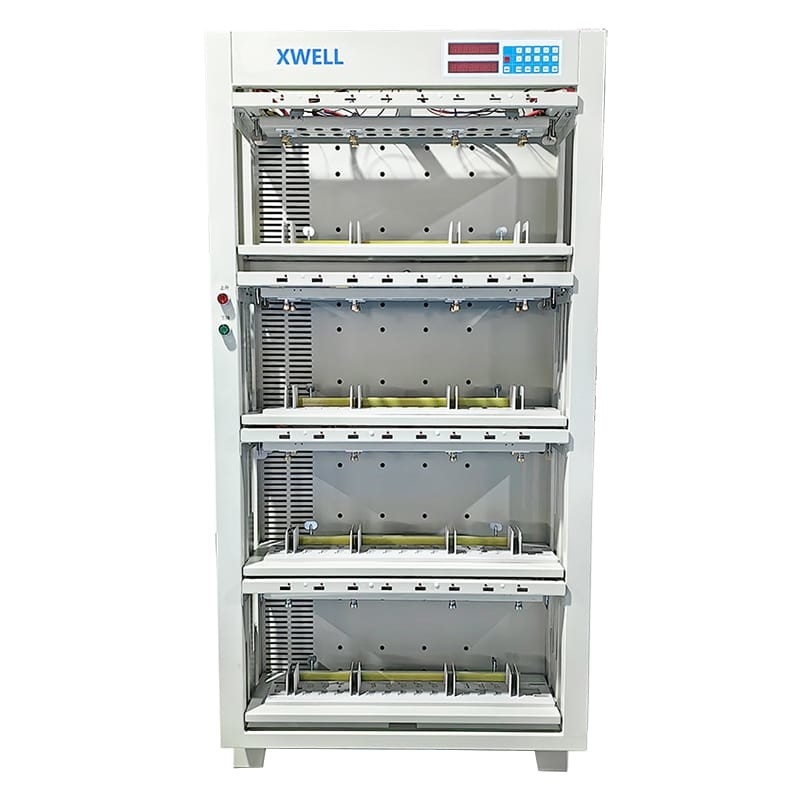

32 Channels 5V 120A Lithium Battery Charge Discharge System
Product Details:
| Place of Origin: | China |
| Brand Name: | XWELL |
| Certification: | CE |
| Model Number: | XW-32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | USD 7900/pcs |
| Packaging Details: | Wooden box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Packaging Details: | International Standard Wooden Package | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Total Channels Number: | 32 | Heat Dissipation: | To Enter The Air Naturally And Exhaust The Air Upward |
| Overall Energy Saving: | Over 70% | Voltage Measuring Range: | 0-5V, 1MV Resolution |
| Battery Voltage Range: | Charge 0-4.5V: Discharge 4.5-2V | Voltage Accuracy: | ±(1‰ Reading +1‰ Full) |
| Control Mode: | Computer Connection Equipment Work, FCL Control | ||
| Highlight: | 120A Lithium Battery Charge Discharge System,5V Lithium Battery Charge Discharge System |
||
Product Description
32 Channels 5V 120A Lithium Battery Charge Discharge System
Software function
A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the
corresponding working status and abnormal conditions in various colors;
B) Battery capacity indication of any section (up to 100 sections);
C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and
discharging curve data, and the time interval of curve data points is ≤ 4 Second;
D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);
E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage
and other data;
F) Set operator authority and operate in different levels;
G) Display charge discharge curve and cycle chart
Product Specification
| Working power | Three-phase five-wire system AC380V±10%, 50HZ | ||
| Work environment | Temperature 0-40 degrees, relative humidity ≤80% | ||
| Heat dissipation | to enter the air naturally and exhaust the air upward | ||
| Overall energy saving | over 70% | ||
| Channel Parameter | |||
| Voltage measuring range | 0-5V, 1MV resolution | ||
| Battery voltage range | Charge 0-4.5V: Discharge 4.5-2V | ||
| Constant voltage range | 2.5V-4.5V | ||
| voltage accuracy | ±(1‰ reading +1‰ full) | ||
| Current accuracy | ±(1‰ reading +1‰ full) | ||
| Software Function | |||
| Control mode | Computer connection equipment work, FCL control | ||
| Communication mode | RS485 baud rate 57,600 | ||
| Process set | A maximum of 32 work steps and 256 cycles are se | ||
| Charging mode | Constant current, constant pressure | ||
| Charging cutoff condition | Voltage, current, time, capacity | ||
| Discharge | constant current | ||
| Discharge cut-off condition | Voltage, time, capacity | ||
| Defensive function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc | ||
| Time range | Set it anywhere from 0 to 30,000 minutes | ||
| Time accuracy | ≤±1‰ | ||
| Sampling inspection period | ≤3S | ||
| Minimum frequency of data recording | ≤5S | ||
| Battery sorting | By capacity, time, discharge platform, etc | ||
| Data processing | Data, graphs, and loop diagrams | ||
XWELL can provide different fixtures for different types of cells
